12.1inch Anti-vandal and IP65 Waterproof SAW Touch Panel

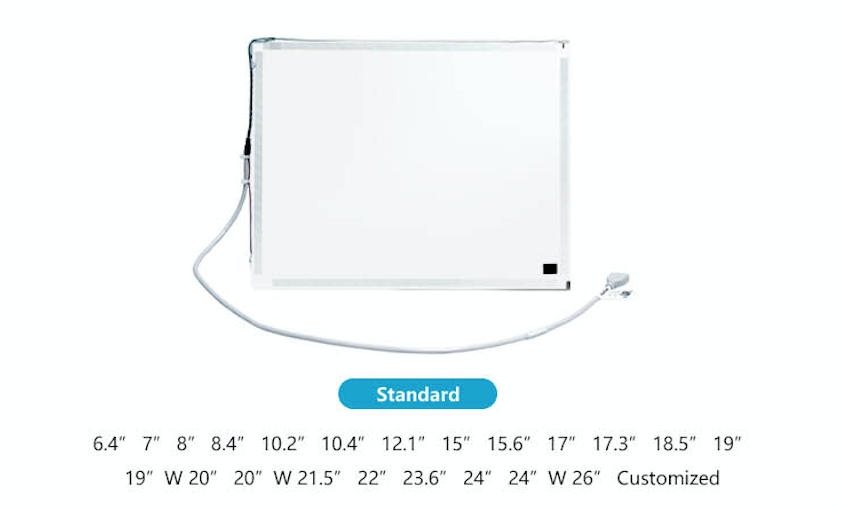

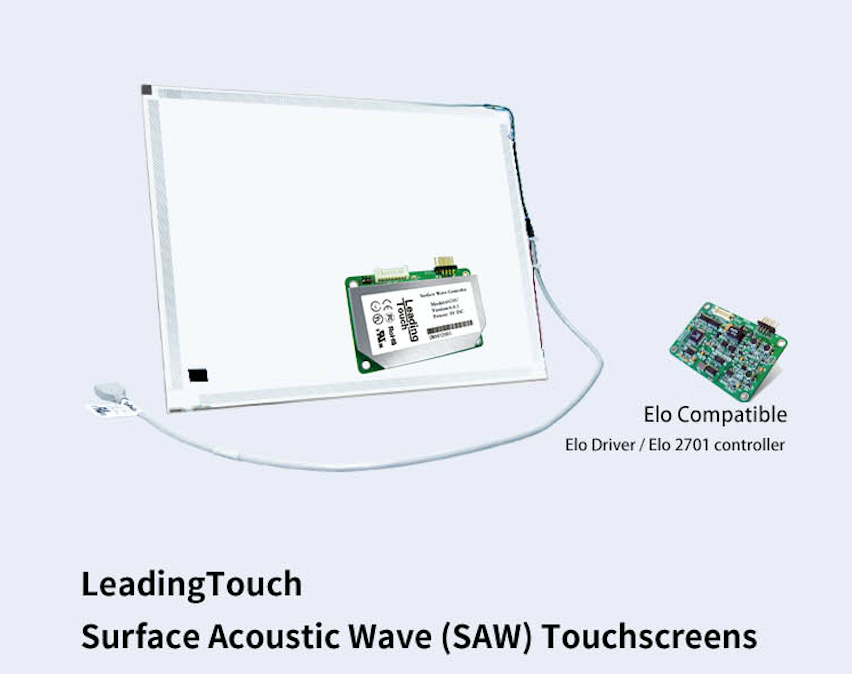

Standard SAW 5"-26"

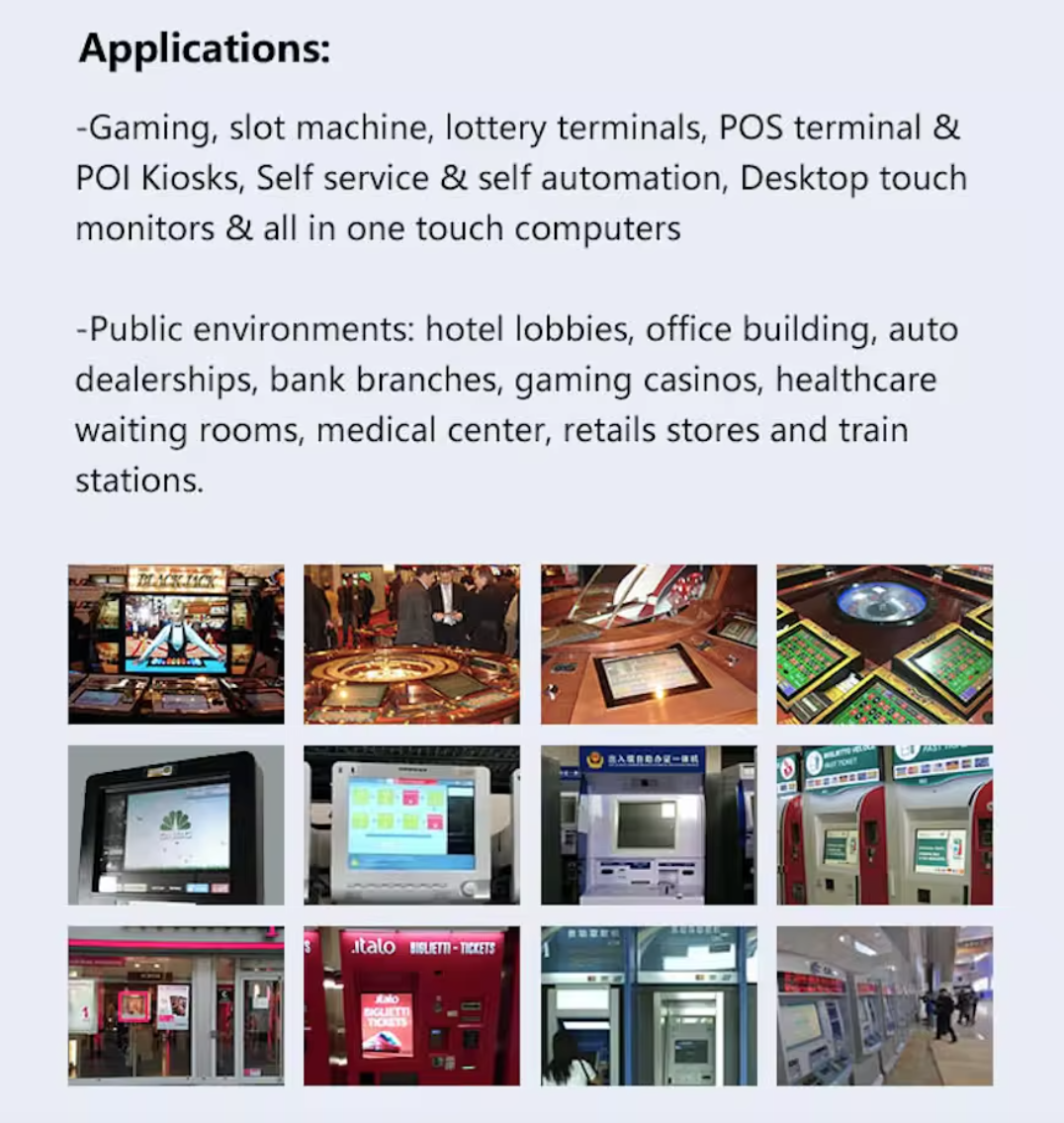

6.4” 7” 8” 8.4” 10.2” 10.4” 12.1” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 20” 20”W 21.5” 22” 23.6” 24” 26” Customized Pure-glass 3mm-12mm touch screen Works even if glass scratched Transducers on the beveled corners of the glass Superior image clarity and light transmission Preferred solutions for applications, reliability

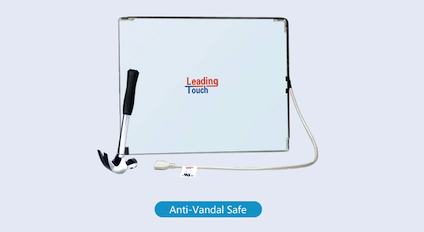

Anti-Vandal Safe 7"-22"
3mm-12mm tempered glass meet UL60950 Works even if glass scratched Transducers on the beveled corners of the glass Superior image clarity and light transmission Preferred solutions for applications, reliability

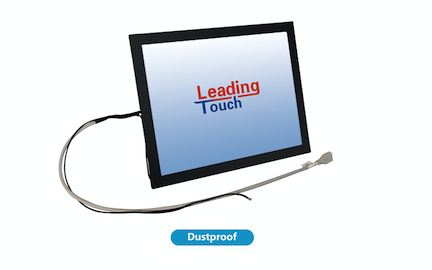

Dustproof 7"-26"
4mm-6mm SAW touch panel inside plastic or metal frame 4mm standard or 6mm anti-vandal touch panel option Superior image clarity and light transmission Dustproof protected and highest transparency Applications solutions for indoor or outdoor systems

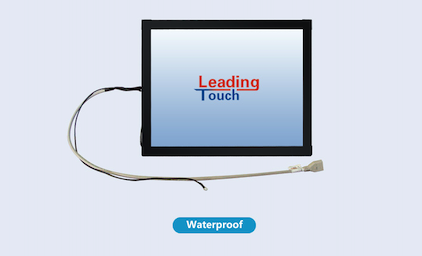

Waterproof 7"-26"
4mm-6mm SAW touch panel inside plastic or metal frame 4mm standard or 6mm anti-vandal touch panel option Superior image clarity and light transmission Waterproof protected and highest transparency Applications solutions for indoor or outdoor systems
IP - Level Anti-vandal 7" to 22"
6mm-12mm Anti-Vandal tempered glass meet UL60950 SAW touch panel inside plastic or metal frame Superior image clarity and light transmission Meet IP65 specification and maintenance free Applications solutions for indoor or outdoor system

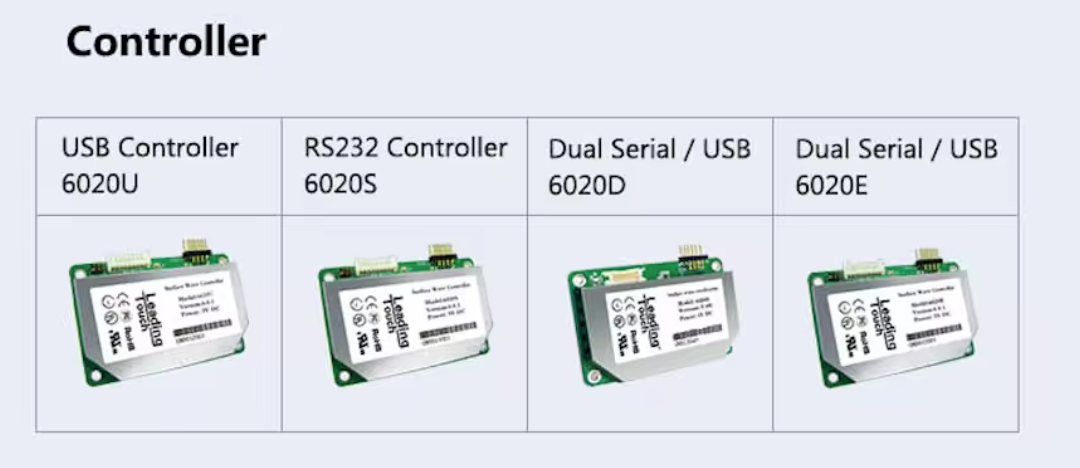

SA1210P30-G6 is the Anti-Vandal touch panel that is designed to easily fit in a 12.1inch 4:3 LCD display. | |
Active area | 247 x 184 (mm) |
View area | 247 x 184 (mm) |
Out dimension | 296 x 233 (mm) |
Thickness | 8.2 mm |
Construction | Pure 6mm-thickness tempered glass with transducers attached on the beveled edge of the glass surface.The reflectors and transducers are sealed inside metal frame. Special glue is applied to the gap between frame and glass substrate to prevent water infiltration |
Light Transmission | 90% (per ASTM D1003) |
Resistance | Anti-Vandal, Dustproof, Waterproof |
The movement mode | Input point, finishing point, following, continuous detection |
| Touch active force | Less than 85 grams |
Positional accuracy | Standard deviation of error is less than 0.008 in (2.03mm). Equates to less than ±1% error on most displays. |
| Touchpoint Density | More then 100,000 touchpoints/in²（15,500 touchpoints/cm²） for a 15-inch touchscreen when use 60xx series controller |
Resolution | Based on controller resolution of 4096 x 4096. |
| Visual Resolution | Clear surface: Excellent, with no noticeable degradation. Antiglare surface:6:1 minimum |
| Gloss | Antiglare surface(curved or flat):95±15 gloss units or 65±15 gloss units per ASTM D2457 using a 60-degree gloss meter |
Input Medium | Finger or gloved hand (rubber ,cloth or leather ) |
Surface Durability | Optical glass surface, Mohs' hardness rating : 7. |
Output form | Coordinate output |
Life Performance | More than 70 million touches |
Interface | Conformity COM |
Operating Temperature | -20°C ~ 50°C |
Operating Humidity | 90% RH at 40°C (no dew falls) |
Storage Temperature | -40°C ~ 70°C |
Operating Altitude | 10,000 feet (3048m) |
| Storage/Transport Altitude | 50,000 feet (15,240m) |
Chemical Resistance | The active area of the touch panel is resistant to the damage of chemicals which do not influence glass, such as acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, vinegar. |
Supply Voltage | Typical +DC 5V,+4.75V to +5.25V |
Electrostatic Protection | EN61000-4-2,1995:Level 4 (15 kV air / 8 kV contact discharges) |
How to supply it | From host of PC |
Cable and Connector | 2 x 6, 0.635 mm square post receptacle |
