Model No: TM-1545

15inch 5-wire resistive touch monitor

15inch 5-wire resistive touch open frame touch monitor

Quantity :

Contact Now

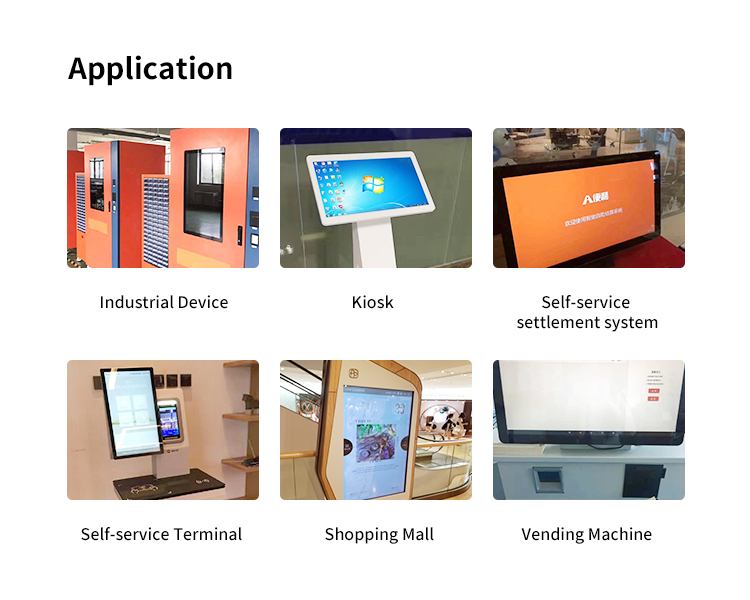

TM-1545 is 15inch 5-Wire Reistive touch open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURE

Economy Choice, Reliable quality, Easy operation;

Superb cosmetic, slim housing;
On-Screen display (OSD);

Optional mounting brackets(Front, side or rear);
Standard VESA hole as mounting option;
Multi-interface apply to various mounting or connection.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

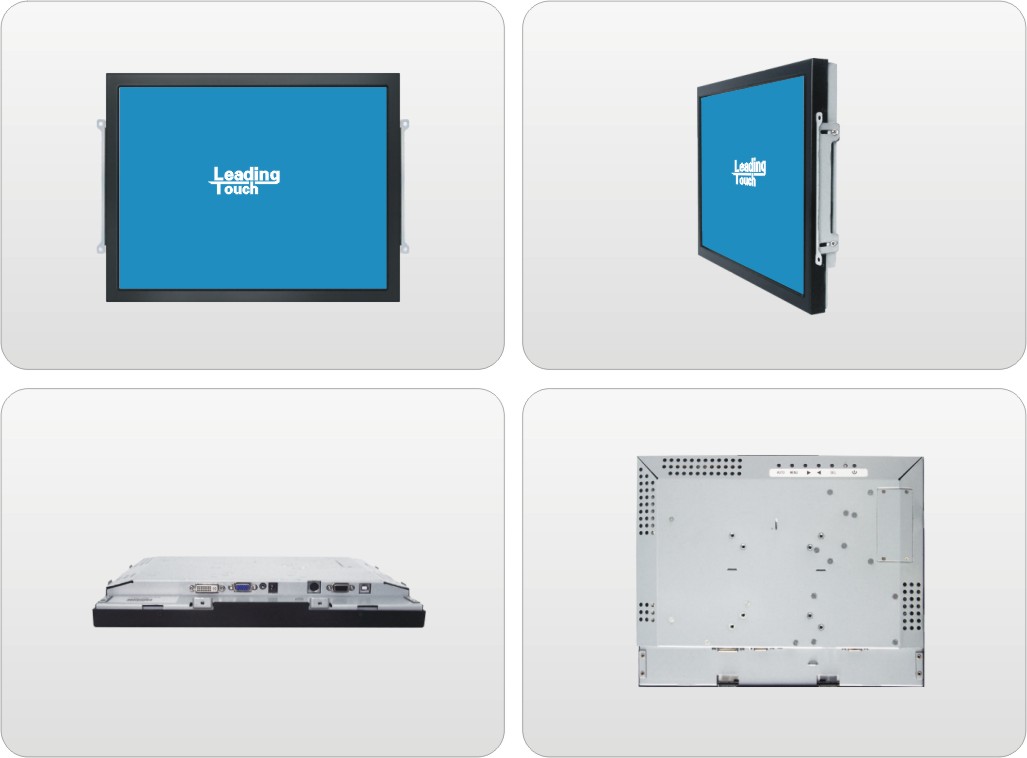

TM-1545 15"5-Wire Resistive Open Frame Touch Monitor Specification
Model	TM-1545
Description	15"5-Wire Resistive Open Frame Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	15'' diagonal, Active matrix TFT LCD
Aspect Ratio	4:3
Optimal (native) Resolution	1024×768 @60Hz
Useful Screen Area	304.1mm × 228.1mm
Colors	16.7 M
Brightness	450nits（500/1000/1500nits options)
Pixel Pitch	0.297×0.297
Response Time	8ms (Typical)
Contrast Ratio	700:1 (Typical)
I/O Ports	USB Touch, RS232, VGA, DVI, Audio IN, 12V D/C in
Viewing Angle(CR≥10)	Horizontal: ±80° or 160° total; Vertical: ±70° or 140° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI Options
Input Video Signal Connector	VGA, DVI Options
On Screen Display (OSD)	Controls(back): On/Off, Menu, Left, Right, Sel, Auto
Touch Technology	Leadingtouch 5-wire Resistive Touch Technology
Touch Interface	USB or RS232
Mounting Options	VESA Mount (75mm or 100mm) , SIde mount or Front mount brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 336.4 x 264.4 x 44.2mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
