Model No: TC-1752
17inch PCAP touch panel pc
17inch PCAP Project Capacitive Open Frame All-in-one Touch Computer
Quantity :
17"All-in-One PCAP Touch Computer TC-1752 is 17inch project capacitive All-in-one touch computer; Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with Anti-vandal tempered cover glass meet UL60950, Suitable for outdoor application, which is designed for Kiosks, Interactive Digital Signage, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and integrated by user. |
FEATURES
| Zero-bezel flat touch computer, slim housing High brightness LED panel 10Point multitouch project capacitive touch technology 3mm Anti-vandal tempered cover glass meet IK07 | Aluminum alloy front bezel, meet IP65 waterproof Efficient and stable Android computer system Standard VESA mounting and four side bracket options |
Combinations of features indicate that LeadingTouch Touch Computer is the best choice for you.
| TC-1752 17" PCAP All-in-one Touch Computer Specification | ||
Product Model | TC-1752 | |
Product Description | 17” PCAP All in one Touch Computer | |
DISPLAY | Display | 17“ 4:3 Active Matrix TFT LCD |
Useful Screen Area | 338.9mm x 277.5mm | |
Optimal Resolution | 1280 x 1024 | |
Number of colors | 16.7 million | |
Brightness | 250nits（500/1000/1500nits options) | |
Contrast Ratio | 1000:1 (Typical) | |
Viewing Angle | Horizontal: ±85°or 170°total Vertical: ±80°or 160°total | |

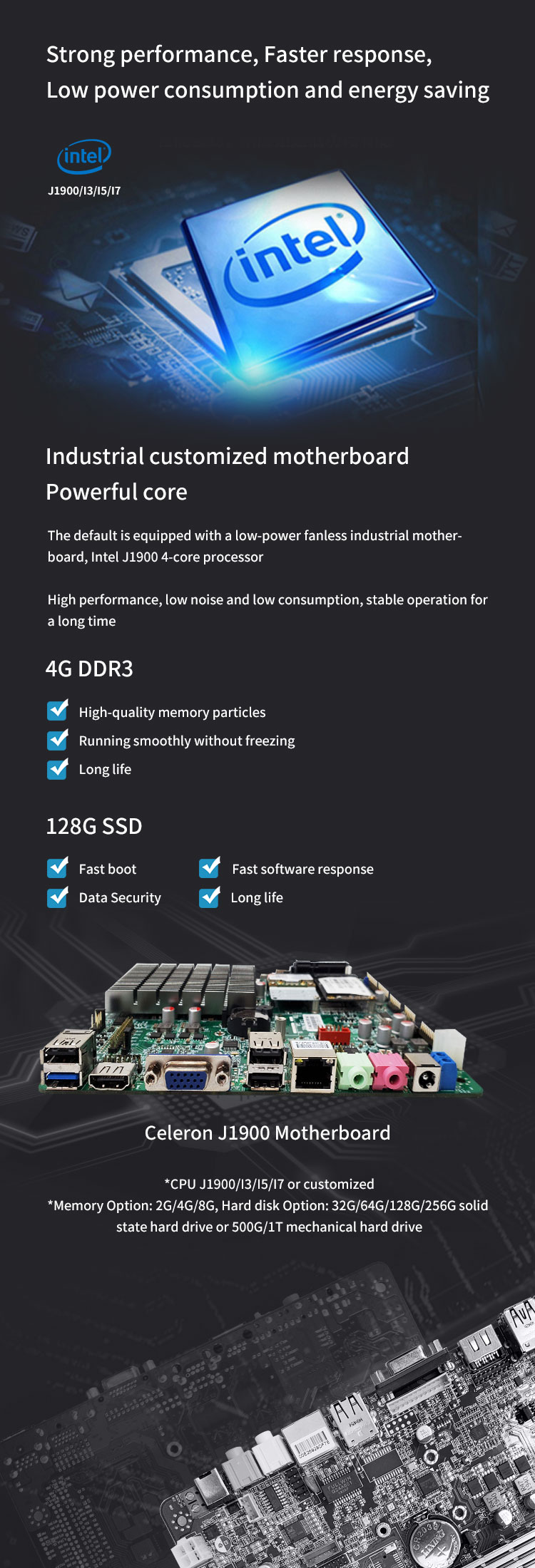

CPU | Celeron J1900 1.99GHz(Intel i3,i5,i7 options) | |
RAM | 4G or 8G | |
Hard Disk | 128 SSD or 256 SSD | |

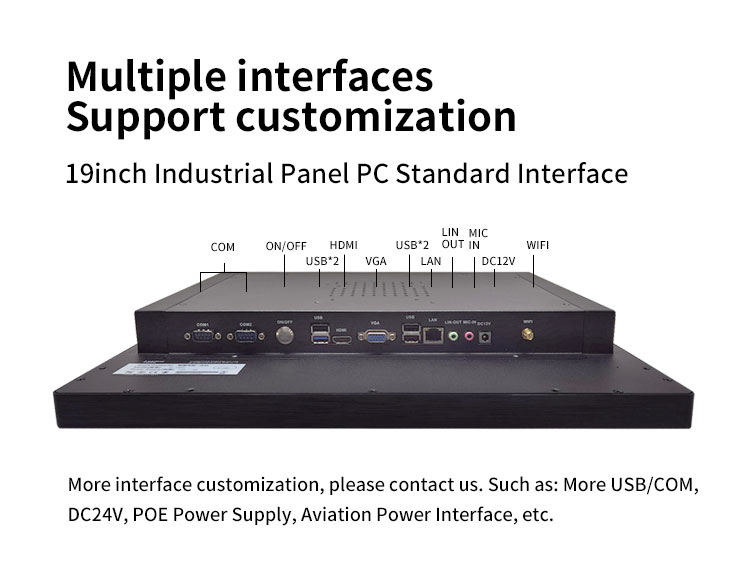

USB and COM Port | 2 x USB 3.0, 2 x USB 2.0, 2 x COM(RS232) por | |
Ethernet Port | 1 x LAN RJ45(Gigabit) | |
Additional Video Out | 1 x HDMI and 1 x VGA out | |
Wireless | Wi-Fi 802.11 a/b/g/n/ac | |
Bluetooth | Bluetooth 4.0 | |
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | |
Speaker | 2x 12W internal speakers | |
TOUCH | Touch Technology | Project capacitive touch technology |
Response Time | 3ms | |
Touch Resolution | 32767 x 32767 | |
Touch Glass | 3mm Anti-vandal tempered glass meet IK07 | |
Sealability | Touchscreen sealed to Aluminum alloy-bezel IP65 | |
Touchscreen sealed to LCD | ||
MTBF | 50,000 hours demonstrated | |
Mounting Options | VESA Mount, four-side bracket and stand option | |
Power Supply | 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Product Dimension | 419.2mm x 354.6mm x 55.3mm | |
Warranty | 1 year | |
Agency Approvals | FCC, CE, RoHS | |
