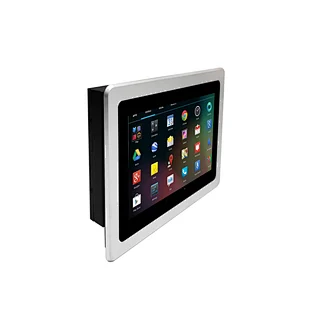

Model No: TM-2162AP

21.5inch PCAP Embedded touch monitor

21.5inch PCAP Project Capacitive Embedded Touch Monitor

Quantity :

Contact Now

TM-2162AP 21.5inch project capacitive Embedded touch monitor, Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with anti-vandal tempered cover glass meet IK07, Suitable for outdoor application, which is designed for Kiosks, Interactive digital signage, ATM, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.

FEATURES

Zero-bezel flat touch computer, slim housing
Video Input VGA, DVI, HDMI Option
On-Screen Display (OSD)
Multitouch10Point project capacitive touch technology

3mm anti-vandal tempered cover glass meet IK07
Aluminum alloy front bezel, meet IP65 waterproof
Efficient and stable intel computer system
Embedded mounting

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-2162AP 21.5" PCAP Embedded Touch Monitor Specification
Model		TM-2162AP
Description		21.5"IP65 Open Frame PCAP Multitouch Touch Monitor
Case/Bezel Color		Steel/Black
Display		21.5inch Active matrix TFT LCD
Aspect Ratio		16:9
Optimal (native) Resolution		1280×1024
Useful Screen Area		476mm × 267.5mm
Colors		16.7 M
Brightness		250nits（500/1000/1500nits options)
Contrast Ratio		3000:1 (Typical)
Viewing Angle(CR≥10)		Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
Input Video Format		VGA, DVI, HDMI Option
Input Video Signal Connector		VGA, DVI, HDMI Option
On Screen Display		Controls (back):on/off, Menu, Left, Right, Auto
Backlight Lamp Life		50000 hrs
Touch	Touch Technology	Projected Capacitive Touch Technology, Ture 10-40points Multitouch
	Response Time	3ms
	Touch Resolution	32767×32767
	Touch Glass	3mm Anti-vandal tempered glass meet IK07
Sealability		Touchscreen sealed to Aluminum alloy-bezel IP65
		Touchscreen sealed to LCD
MTBF		50000 hrs demonstrated
Touch Interface		USB touch interface
Support OS		HID Mode: Windows 7/8/10/11, Linux, Android, Raspberry Pi, MAC, etc.
Mounting Options		VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply		12V DC, (24V DC POE Option) External Adapter: 100-240VAC, 50-60Hz
Temperature Range		Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)		Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight		Touch Monitor 556 x 351 x 53mm
Warranty		1 year
Agency Approvals		CCC, FCC, CE, RoHS
