Model No: TC-2382D

23.8inch PCAP touch panel pc

23.8inch PCAP Project Capacitive Desktop All-in-one Touch Computer

Quantity :

Contact Now

23.8"All-in-One PCAP Touch Computer

TC-2382D is 23.8inch project capacitive All-in-one touch computer; Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with Anti-vandal tempered cover glass meet IK07, Suitable for outdoor application, which is designed for Kiosks, Interactive Digital Signage, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and integrated by user.

FEATURES

Zero-bezel flat touch computer, slim housing
High brightness LED panel
10Point multitouch project capacitive touch technology
3mm Anti-vandal tempered cover glass meet IK07

Aluminum alloy front bezel, meet IP65 waterproof
Efficient and stable Android computer system
Standard VESA mounting and four side bracket options

Combinations of features indicate that LeadingTouch Touch Computer is the best choice for you.

TC-2382D 23.8" PCAP All-in-one Desktop Touch Computer Specification
Product Model		TC-2382D
Product Description		23.8” PCAP Desktop All in one Touch Computer
DISPLAY	Display	23.8"16:9 Active Matrix TFT LCD
	Useful Screen Area	527.5mm x 297mm
	Optimal Resolution	1920 x 1080
	Number of colors	16.7 million
	Brightness	250nits（500/1000/1500nits options)
	Contrast Ratio	3000:1 (Typical)
	Viewing Angle	Horizontal: ±89°or 178°total Vertical: ±89°or 178°total

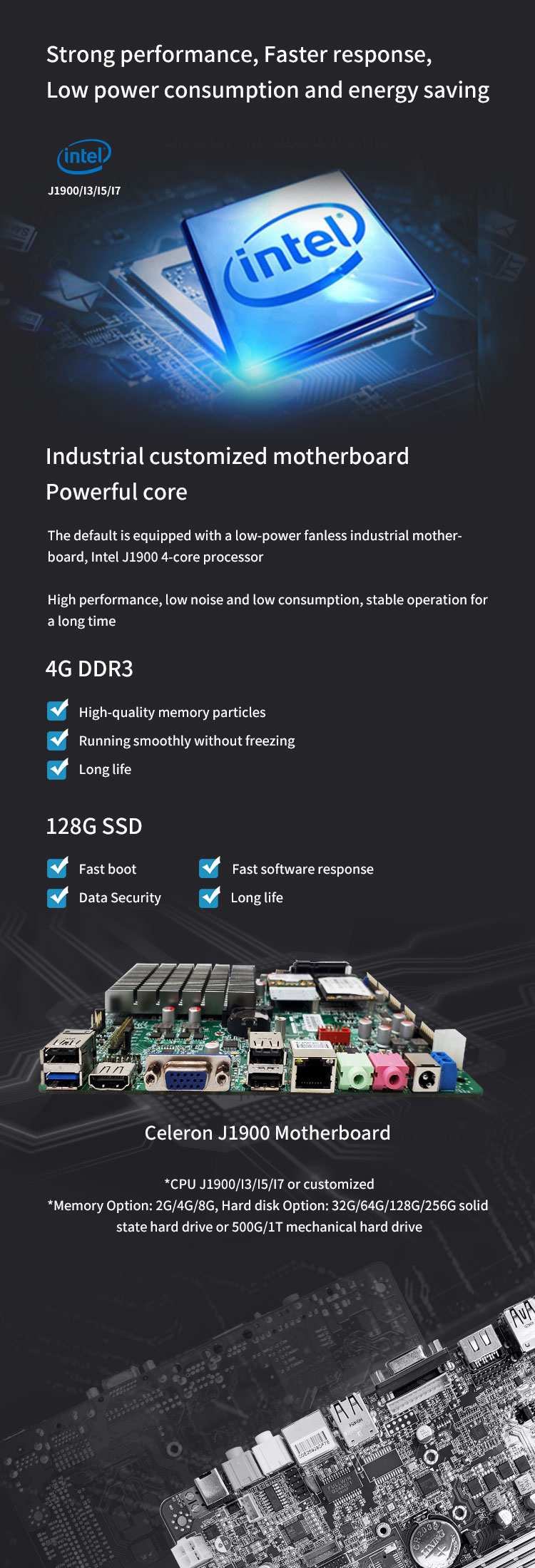

	CPU	Celeron J1900 1.99GHz(Intel i3,i5,i7 options)
	RAM	4G or 8G
	Hard Disk	128 SSD or 256 SSD

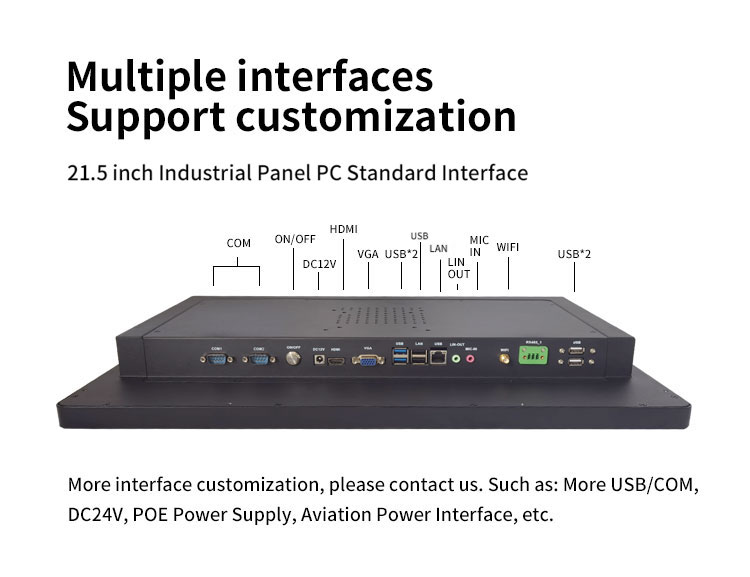

	USB and COM Port	2 x USB 3.0, 2 x USB 2.0, 2 x COM(RS232) por
	Ethernet Port	1 x LAN RJ45(Gigabit)
	Additional Video Out	1 x HDMI and 1 x VGA out
	Wireless	Wi-Fi 802.11 a/b/g/n/ac
	Bluetooth	Bluetooth 4.0
	Audio and Microphone	1 x 3.5mm line out, and 1 x microphone out
	Speaker	2x 12W internal speakers
TOUCH	Touch Technology	Project capacitive touch technology
	Response Time	3ms
	Touch Resolution	32767 x 32767
	Touch Glass	3mm Anti-vandal tempered glass meet IK07
Sealability		Touchscreen sealed to Aluminum alloy-bezel IP65
Sealability		Touchscreen sealed to LCD
MTBF		50,000 hours demonstrated
Mounting Options		VESA Mount, four-side bracket and stand option
Power Supply		100-240VAC, 50-60Hz
Temperature Range		Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)		Operating: 20%-80%; Storage: 10%-90%
Product Dimension		569.2mm x 341.1mm x 58.9mm
Warranty		1 year
Agency Approvals		FCC, CE, RoHS
