Model No: TC-5562A
55inch PCAP Multitouch AIO Android Tablet
55" Project Capacitive Multitouch AIO Android Tablet
Quantity :

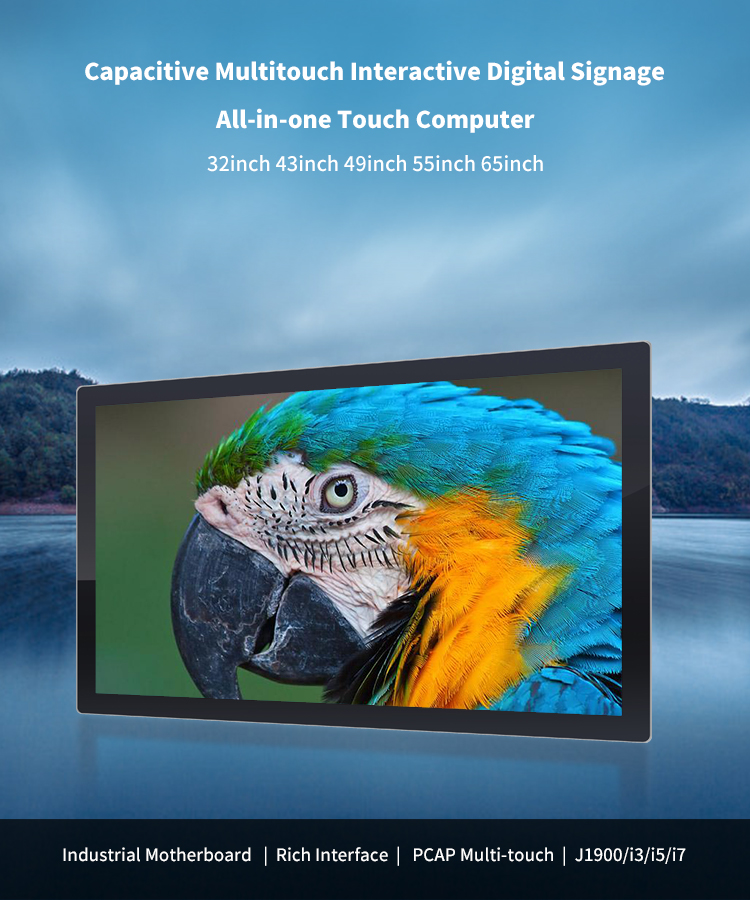

55"Project Capacitive Multitouch AIO Interactive Digital Signage LeadingTouch's TC-5562A is 55inch Project Capacitive All-in-one Multitouch interactive digital signage, delivers a professional-grade, extra-large format touchscreen in slim, integrated PC-systems, Designed for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial application. |
FEATURES

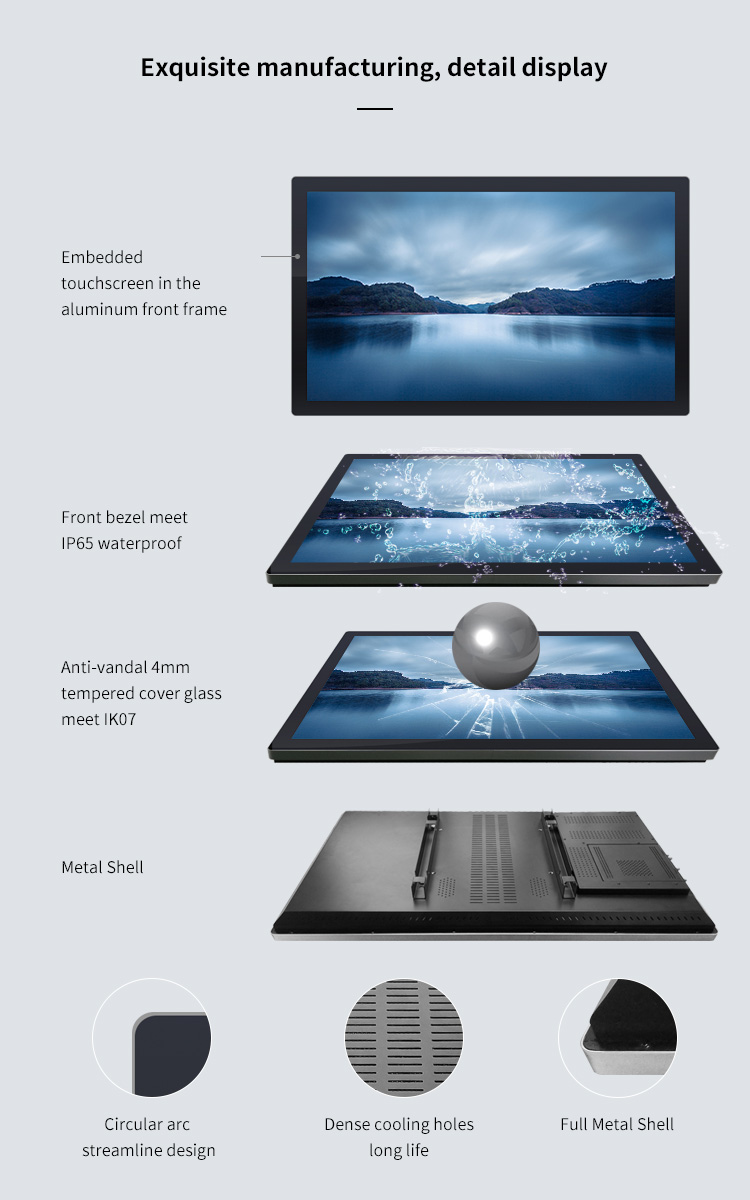

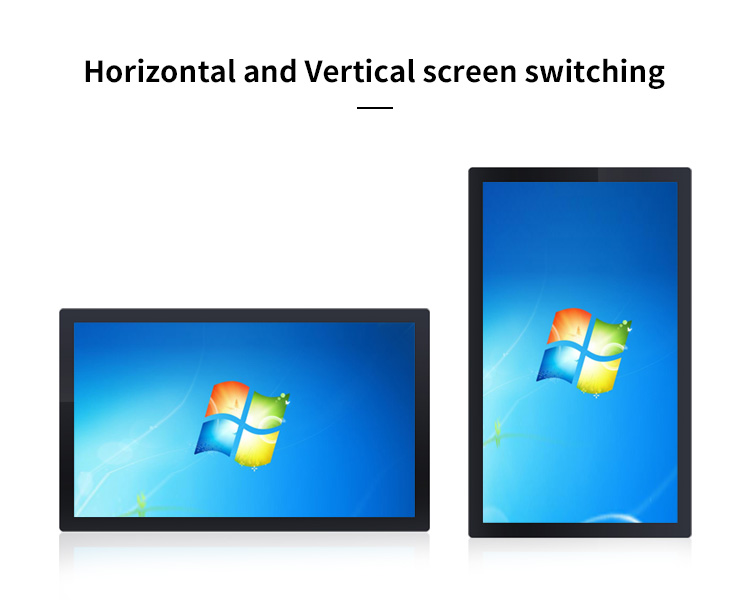

| Embedded touch screen in the aluminum front frame 10point multitouch PCAP touch technology Embedded touchscreen in the aluminum front frame | UHD 3840 x 2160 4K Display 4mm Anti-vandal tempered glass meet IK07 Flexible mounting in portrait, landscape and table-top orientation |
Combinations of features indicate that LeadingTouch All-in-One PCAP Interactive Digital Signage is the best choice for you.
| TC-5562A 55"Android PCAP All-in-one Touch Computer Specification | ||
Product Model | TC-5562A | |
Product Description | 55" Android PCAP All in one Touch Computer | |
DISPLAY | Display | 55"16:9 Active Matrix TFT LCD |
Useful Screen Area | 1210mm x 680mm | |

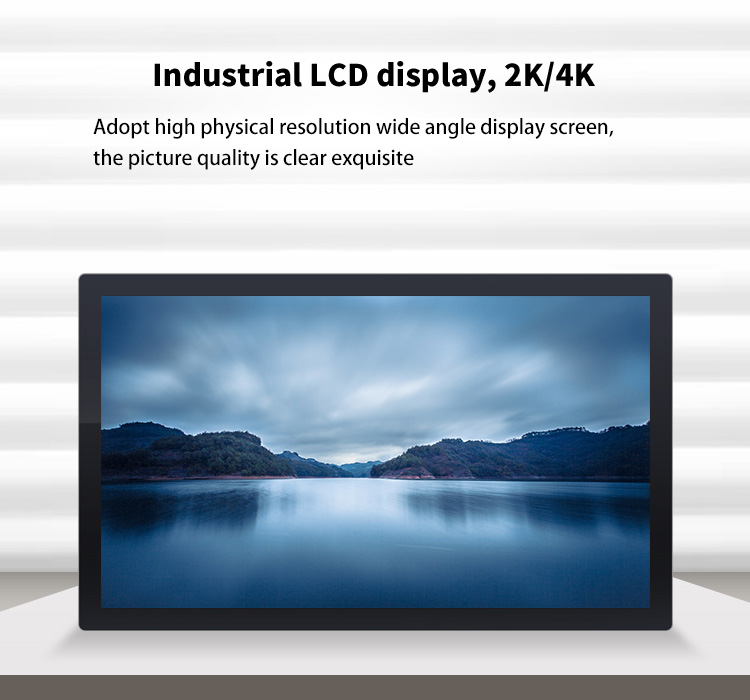

Optimal Resolution | 3840 x 2160 4K | |
Number of colors | 16.7 million | |
Brightness | 500nits（500/1000/1500nits options) | |
Contrast Ratio | 2000:1 (Typical) | |
Viewing Angle | Horizontal: ±89°or 178°total Vertical: ±89°or 178°total | |

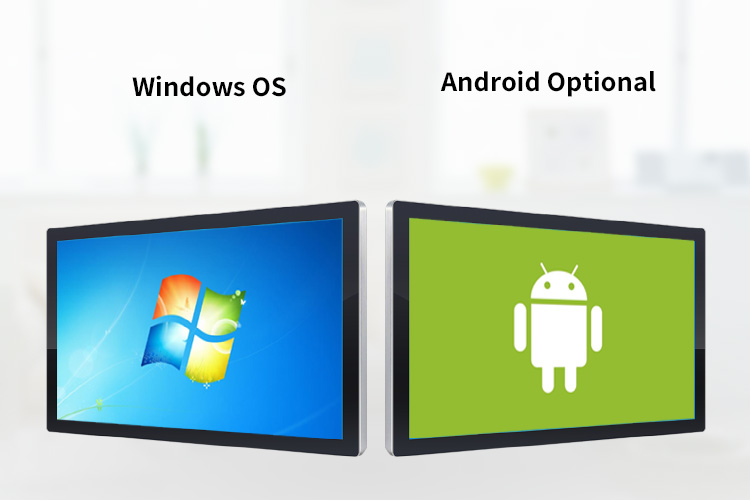

| ANDROID | Android OS | 7.1/9.0/11.0 Option |
| CPU | Quad-core ARM Contex-A17 up to 1.8G | |
GUP | Mail-T764 GPU | |
RAM and ROM Flash | RAM:2G/4G DDR3 ROM Flash:Nand Flash 16GB/32GB/64GB/128GB | |
| SD and SIM Card Socket | SD Card Stoch:1,(Max 32G) SIM Card Socket:1 | |
| USB and COM Port | 4 x USB Port, 2 x RS232 COM Port (RS485 option) | |
| OTG Port | 1 x OTG | |
| Video Input | 1 x HDMI | |
| Ethement Port | 1 x LAN RJ45(Gigabit) | |
Wireless | Wi-Fi 802.11 a/b/g/n/ac | |
Bluetooth | Bluetooth 4.0 | |
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | |
Speaker | 2x 12W internal speakers | |
| 4G Module | Options | |
TOUCH | Touch Technology | Project capacitive touch technology |
Response Time | 3ms | |
Touch Resolution | 32767 x 32767 | |
Touch Glass | 3mm Anti-vandal tempered glass meet IK07 | |
Sealability | Touchscreen sealed to Aluminum alloy-bezel IP65 | |
Touchscreen sealed to LCD | ||
MTBF | 50,000 hours demonstrated | |
Mounting Options | VESA Mount, four-side bracket and stand option | |
Power Supply | External Adapter 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Product Dimension | 1289mm x 760mm x 84mm | |
Warranty | 1 year | |
Agency Approvals | FCC, CE, RoHS | |
