Model No: TC-5562
55inch PCAP Multitouch AIO Interactive Digital Signage
55" Project Capacitive Multitouch AIO Interactive Digital Signage
Quantity :

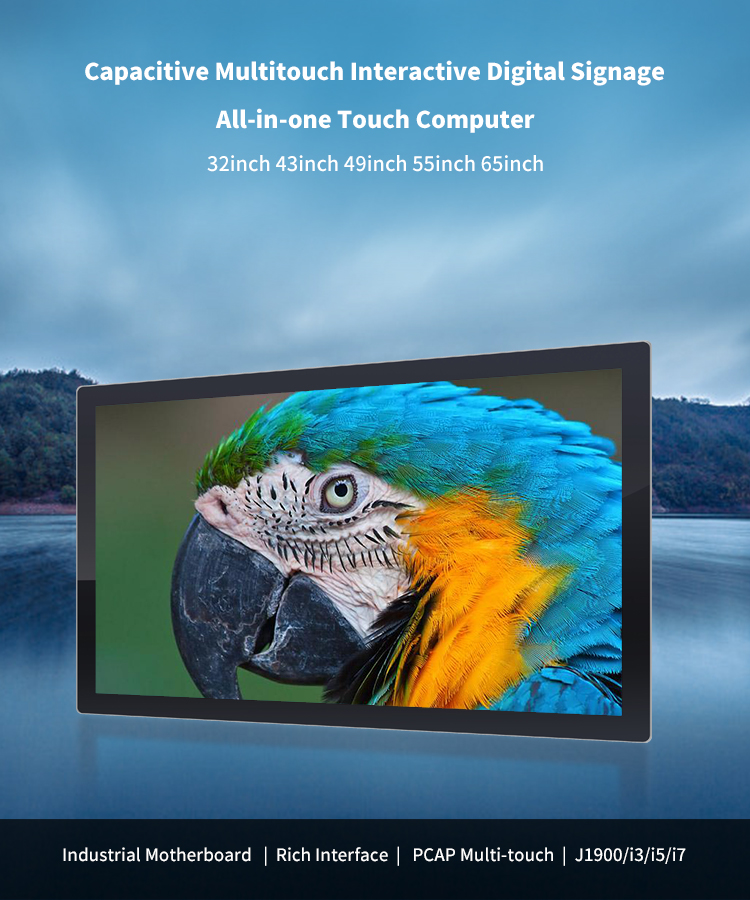

55"Project Capacitive Multitouch AIO Interactive Digital Signage LeadingTouch's TC-5562 is 55inch Project Capacitive All-in-one Multitouch interactive digital signage, delivers a professional-grade, extra-large format touchscreen in slim, integrated PC-systems, Designed for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial application. |
FEATURES

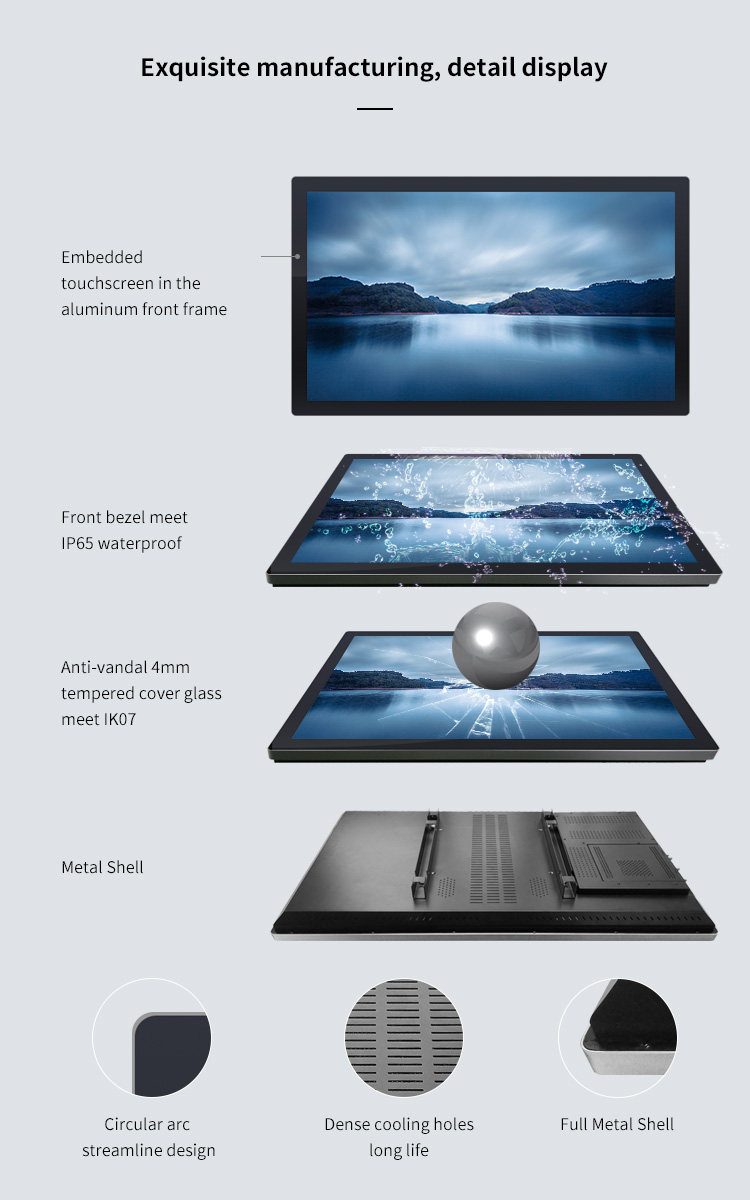

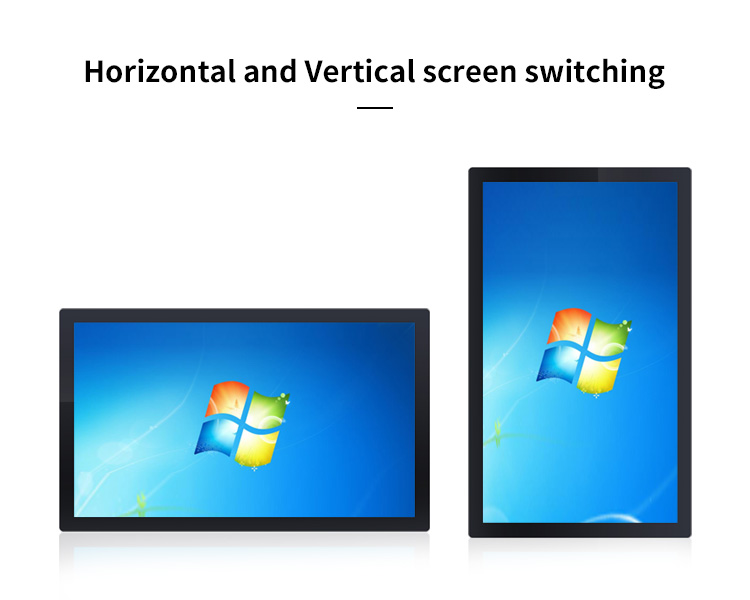

| Embedded touch screen in the aluminum front frame 10point multitouch PCAP touch technology Intel I3 CPU, 4G/8G RAM, SSD 64G/128G/256G Hard Disk | UHD 3840 x 2160 4K Display 4mm Anti-vandal tempered glass meet IK07 Flexible mounting in portrait, landscape and table-top orientation |
Combinations of features indicate that LeadingTouch All-in-One PCAP Interactive Digital Signage is the best choice for you.
| TC-5562 55inch AIO Interactive Digital Signage Specification | ||
Product Model | TC-5562 4K | |
Product Description | 55"4K AIO Capacitive Multitouch Interactive Digital Signage | |

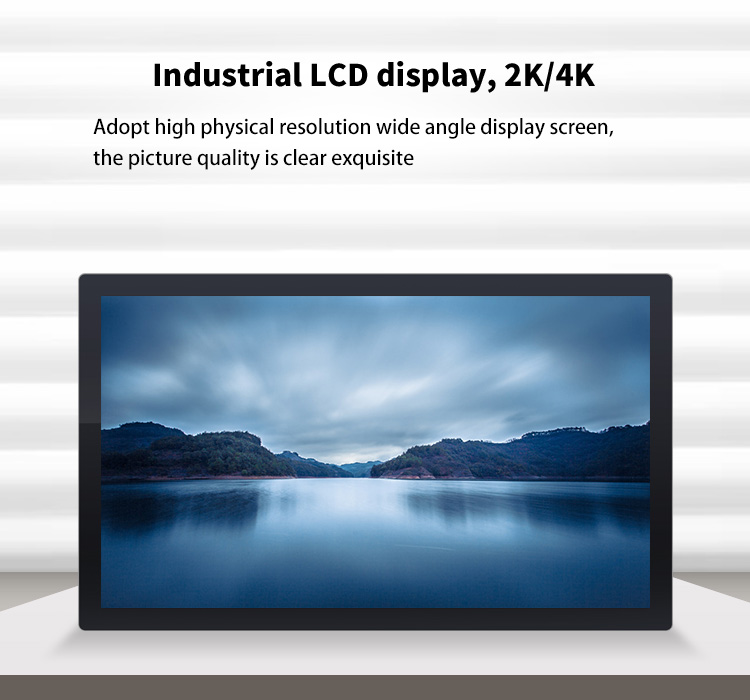

DISPLAY | Display | 55inch 16:9 Active Matrix TFT LCD |
Useful Screen Area | 1210mmX680mm | |
Optimal Resolution | 3840 x 2160 4K UHD | |
Number of colors | 16.7 Million colors | |
Brightness | 500nits （500/1000/1500nits options) | |
Contrast Ratio | 2000:1 (Typical) | |
Response Time | 4ms (Typically) | |
Viewing Angle | Horizontal: ±89°or 178°total | |
Vertical: ±89°or 178°total | ||
TV(Options) | 1xTV_Component Input, 1xTV_Coaxial Input, 3xHDMI and 1xVGA Input,1xUSB | |

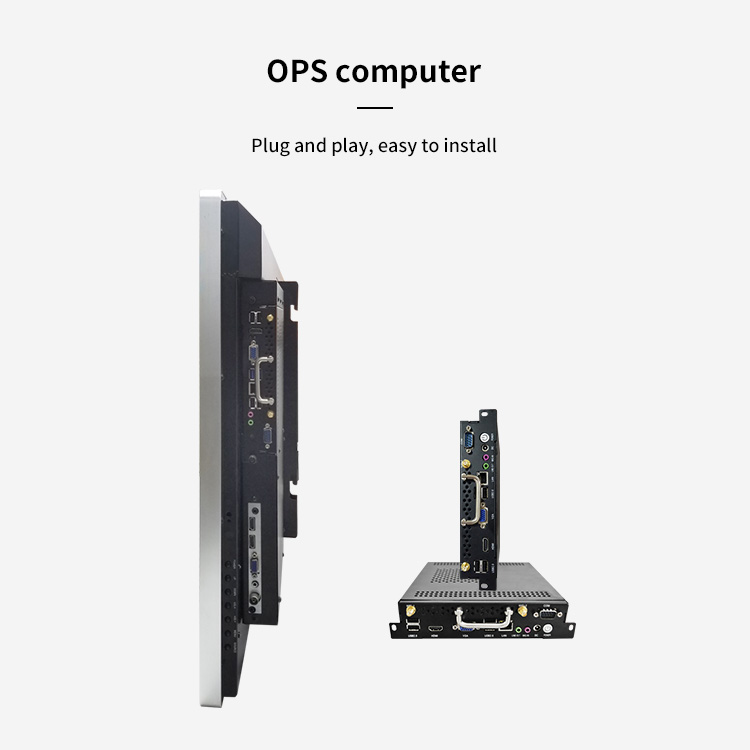

OPS COMPUTER BOX | CPU | Intel i3 (i5,i7 Options) |

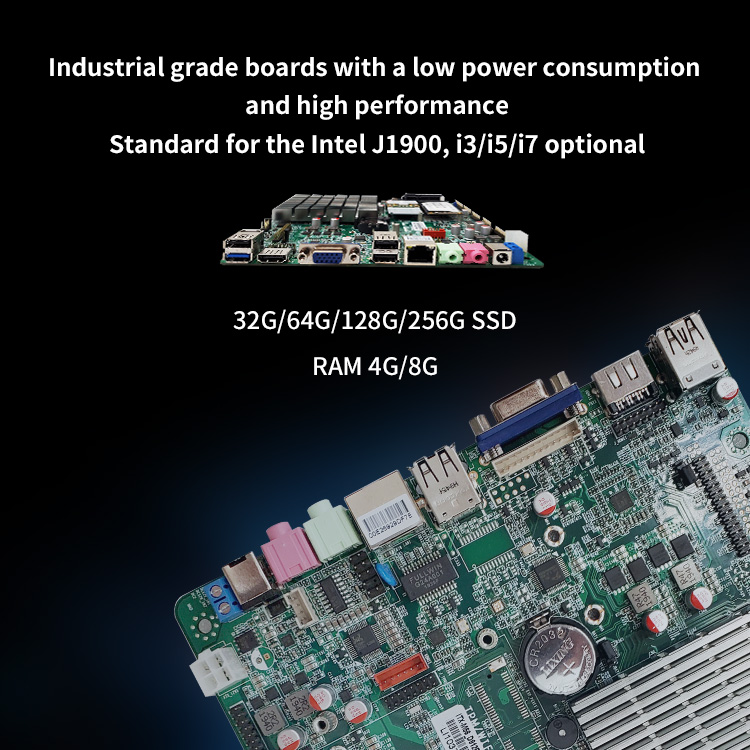

Mainboard | OPS_Mainboard | |
RAM | 4G/8G | |
Hard disk | 128G/256G SSD or 500G STAT | |
USB and COM Port | 2 x USB 3.0, 2 x USB 2.0,1 x COM(RS232) port | |
Ethernet Port | 1 x LAN RJ45(Gigabit) | |
Additional Video Out | 4 x HDMI and 1 x VGA out | |
Wireless | Wi-Fi 802.11 a/b/g/n/ac | |
Bluetooh | Bluetooh 4.0 | |
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | |
Speaker | 2x 12W internal speakers | |

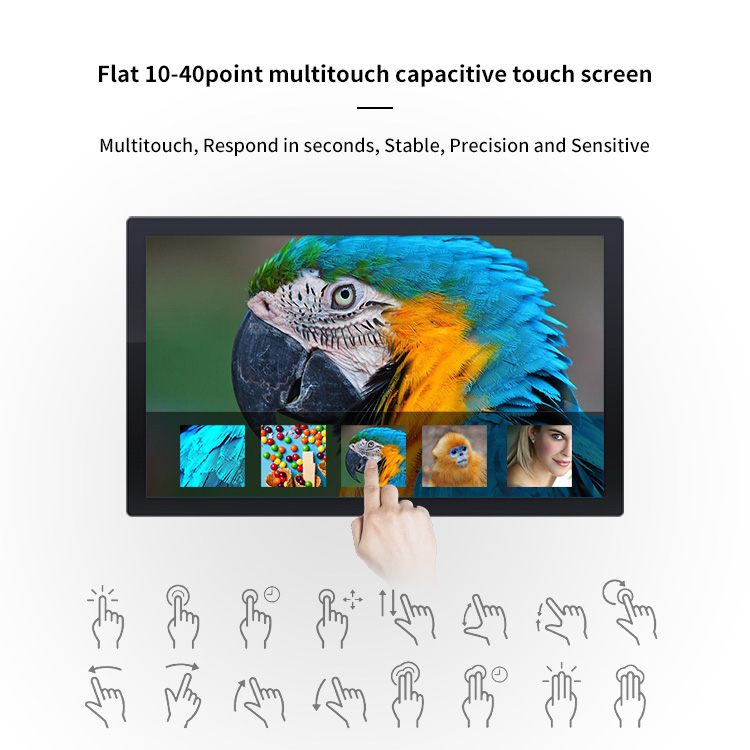

TOUCH | Touch Technology | Project capacitive touch technology Ture 10point multitouch |
Response Time | 3ms | |
Touch Resolution | 32767 x 32767 | |
Touch Glass | 4mm Anti-vandal tempered glass meet UL60950 IK07 | |
Sealability | Touchscreen sealed to Aluminum alloy-bezel | |
Sealability | Touchscreen sealed to LCD | |
MTBF | 50,000 hours demonstrated | |
Protect Level | IP65 Waterproof Front-Bezel, 4mm anti-vandal glass | |
Mounting Options | VESA Mount 600 x 1200mm , Back bracket option | |
Power Supply | 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Product Dimension | 1289mmX760mmX84mm | |
Package Dimension and Weight | 1410mmX881mmX190mm Weight:55KG | |
Warranty | 1 year | |
Agency Approvals | CCC,FCC, CE, RoHS | |
