Model No: TM-5562 4K
55inch PCAP touch monitor
55inch UHD 4K PCAP Project Capacitive Open Frame Touch Monitor
Quantity :

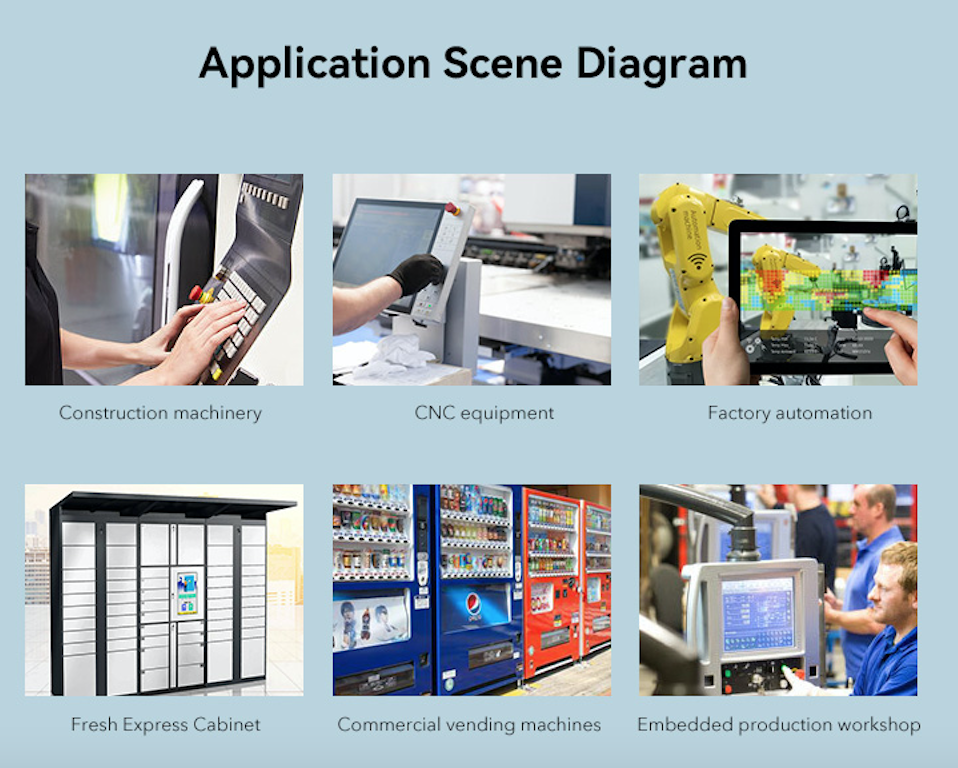

TM-5562 55inch UHD 4K multitouch project capacitive open frame touch monitor, cost effective touch monitor, which is designed for Kiosks, Interactive digital signage, ATM, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.
FEATURES
Economy choice, Reliable quality, Easy Operation Superb cosmetic, slim housing Professional LCD panel, horizontal or vertical Multitouch10Point project capacitive touch technology | On-screen display (OSD) UHD 3840×2160 Anti-vandal Physical tempered cover glass meet IK07 Video Input VGA, DVI, HDMI Options Standard VESA mounting and four side bracket options |
Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.
TM-5562 4K 55"PCAP Open Frame Touch Monitor Specification | ||
Model | TM-5562 4K | |
Description | 55"UHD 4K Project Capacitive Open Frame Touch Monitor | |
Case/Bezel Color | Steel/Black | |
Display | 55inch Active matrix TFT LCD | |
| Aspect Ratio | 16:9 | |
Optimal (native) Resolution | 3840×2160 UHD 4K | |
Useful Screen Area | 1210mm × 681mm | |
Colors | 16.7 M | |
Brightness | 400nits（500/1000/1500nits options) | |
Contrast Ratio | 2000:1 (Typical) | |
Viewing Angle(CR≥10) | Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total | |
Input Video Format | VGA, DVI, HDMI Option | |
Input Video Signal Connector | VGA, DVI, HDMI Option | |
| On Screen Display | Controls (back):on/off, Menu, Left, Right, Auto | |
| Backlight Lamp Life | 50000 hrs | |
| Touch | Touch Technology | Projected Capacitive Touch Technology, Ture 10-40points Multitouch |
| Response Time | 4ms (Typical) | |
| Touch Resolution | 32767×32767 | |
| Touch Glass | 4mm Anti-vandal tempered glass meet IK07 | |
| Sealability | Touchscreen sealed to Bezel | |
| Touchscreen sealed to LCD | ||
| MTBF | 50000 hrs demonstrated | |
Touch Interface | USB touch interface | |
| Support OS | HID Mode: Windows 7/8/10/11, Linux, Android, Raspberry Pi, MAC, etc. | |
Mounting Options | VESA Mount, Back bracket option | |
| Power Supply | 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Dimension and Weight | Touch Monitor 1313.4 x 784.2 x 67mm | |
Warranty | 1 year | |
Agency Approvals | CCC, FCC, CE, RoHS | |
