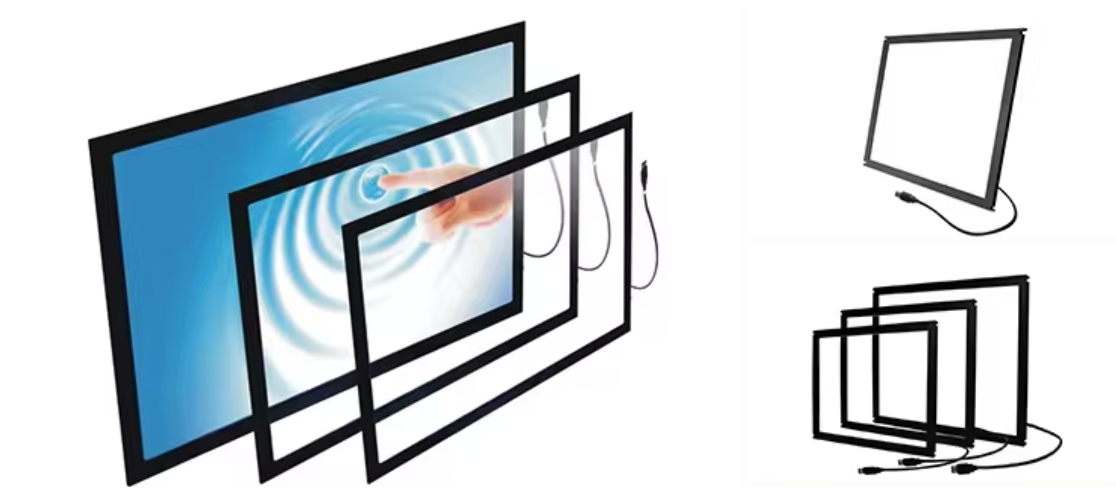

65inch aluminum alloy infrared ir touch frame overlay kit

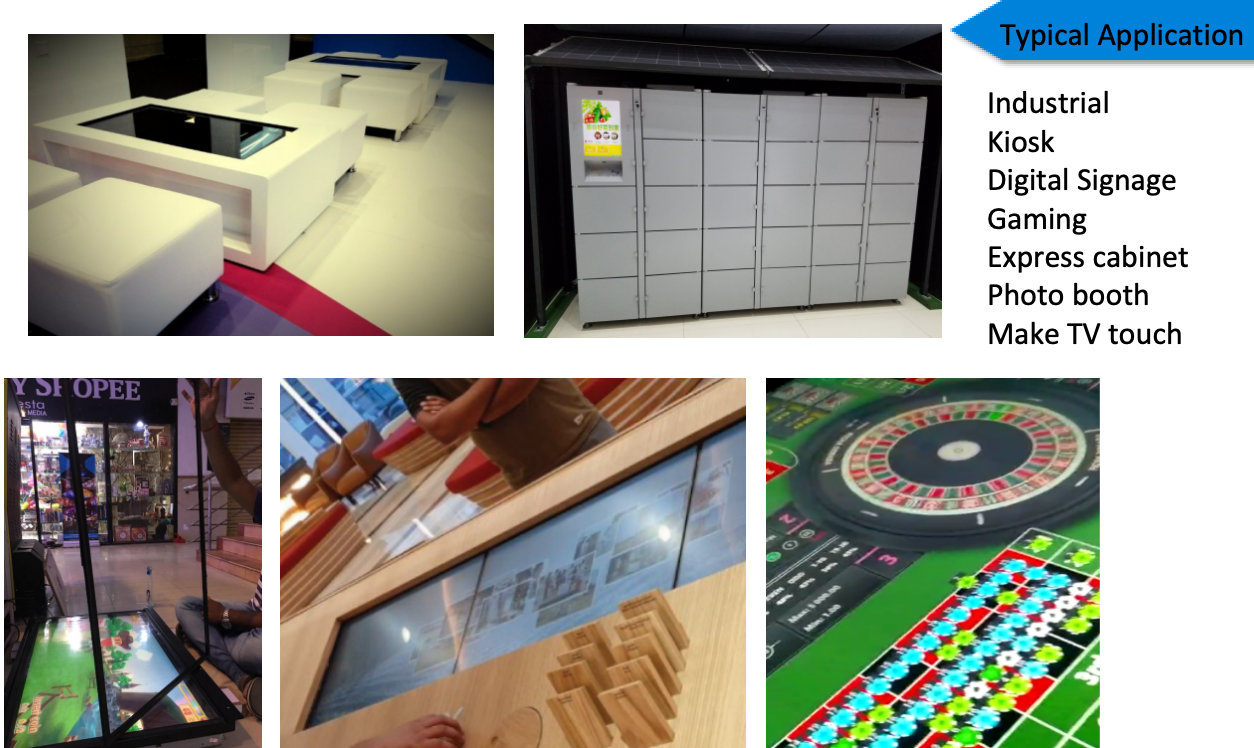

Leadingtouch Infrared touchscreen is USB port, driver free with highest transparency. The preferred solution for application, reliability and clarity. Leasingtouch technology combines superior optical performance with excellent gasket-sealing capabilities, so it's an excellent choice for harsh industrial and outdoor kiosk applications. Touched with a finger, gloved hand, fingernail, or stylus, it delivers a fast, accurate response every time. Leadingtouch infrared technology is available for standard size and large size panel solutions. We can customized any size of it.
Muli-touch
Multi-touch function defines diverse of hand gestures to input your commands, which equals to a mouse. With one finger touch or dragging on screen surface can accomplish click, dragging or draw-line. Two fingers moving together on screen can zoom in/out. The gesture one finger anchored and the other moving around can lead to a 3D rotating. Leadingtouch Multi-touch touchscreen has all the advantages of traditional single-touch touchscreen: reliable, stable, super sensitive and drift-free, and can support various operation system such as Windows7/8/10/11, Android, Linux, etc...
| IRD6501UT Series infrared touch panel is Ture 10point multitouch dustproof touchscreen that designed to easily fit in 65inch LCD Display. | |
Active Area | 1429mm x 803.5mm |
| Opening Bezel | 1433.2mm x 807.7mm |
Outline Dimension | 1466.2mm x 840.7mm with frame |
| Resolution | 32768 x 32768 |
| Optical element pitch | 5mm |
| Input Medium | Finger or gloved hand (rubber, cloth or leather) |
| Min. Touch Medium | ＞6mm |
| Response Time | 5msec average |
| Scan Frequency | 43~50Hz |
| Glass Options | Without glass Or with 4mm tempered glare/AG(anti-glare)/AR(anti-reflective) glass |
| Light Transmission | 100% without glass |
| Surface Durability | Mohs' hardness rating:7. |
| Positional Accuracy | Standard error deviation less than 1.5mm. |
| Touch Point | Ture 10points, up to 20points |
| Light Resisyance | Any angle for Sunlight |
| Life time | >10 years |
| Temperature | Operating range: -20°C ~ 70°C Storage range: -20°C ~ 70°C |
| Humidity | Operating range: 0%~90% RH (no dew falls) Storage range: 0% to 95% RH (no dew falls) |
| Thermal Cycling | Ambient (0.5 hr) to 65°C / 90%RH (0.5 hr), 12 thermal cycles, temperature range: 2°C/Min |
| Operating System | Support multitouch touch under Windows 7/8/10.,Linux.Android,Mac etc |
Controller | Integrate inside touch panel |
Operation Voltage | Typical +DC 5V,+4.75V to +5.25V |
| Power Supply | USB, Power ripple max.200mV rms, |
| Current | Power<2W,operating current<400mA |
| Interface | Full Duplex USB 2.0 (Full Speed) |
| Electrostatic Protection | 15KV air / 8KV contact discharges（EN61000-4-2,1995:Level 4） |
| Cable and Connector | Cable typically exits from lower right corner, terminating in USB A-Type male connector |
