Model No: 4W0700AD-N11

7 Inch Touch Screen 4 wire resistive touch panel

Quantity :

Contact Now

Products: 7inch Touch Panel 4W Resistive Touch Panel
Model: 4W0700AD-N11

Products Advantage:

Flexible, light weight, easy installation
4096x4096 HD resolution, high precision, fast response
USB port, touch a correction, high stability
Touch intensity, high sensitivity, touch-free drift
Single touch point, one-time calibration
More than 1 million touches in one location without failure
Support pen, finger, gloved hand, and many other media touch
Can be adapted to harsh environments

1. General Specification

Active Area	88mm x 155mm
View Area	90.5mm x 157.5mm
Outside Dimension	100mm x 165mm
Total Thinckness	1.4mm(Glass:1.1mm)
Tail Length	51mm
Pinch	1.0
Input Medium	Stylus or Finger or Similar
Activation force	≦45g ~ 110g (Stylus or Finger or Similar)
Contact Bounce	Less than 12 ms (input by finger)
Positional accuracy	X≦1.5%, Y≦1.5%
Surface Hardness	≧3H (Meets pencil hardness 3H per ASTM D 3363)
Resolution	Resolution Based on controller resolution of 4096 x 4096
Life Performance	More than 1 million touches in one location without failure
Light Transmission	75~ 85% (typical value) (per ASTM D1003)
Chemical Resistance	See Note1
Light Transmission	≧80%(Inside of guaranteed active area) Accordance with ASTM D1003
Haze(ASTM D 1003)	Clear surface≦3% Antiglare Surface≦4% Anti-Newton≦10%
Operating Temperature	-10℃ ~ 60℃
Operating Humidity	20% ~ 85% RH (no dew falls)
Storage Temperature	-20℃ ~ 70℃
Storage Humidity	10% ~ 90% RH (no dew falls)
Waterproof	Not damaged by running water applied to the active area

2. Electrical Characteristics

Touch Interface	Conformity COM / USB
Supply Voltage	DC 5V
How to supply it	From COM / USB Port of PC
X、Y Resistance	X:200Ω~ 900Ω Y: 200Ω~ 900Ω (Varies with different size)
Insulation Resistance	≧20MΩ/25V(DC)
Working Current	5mA ~ 25mA
Endurance	No acting damage at DC50V/60sec.
Warranty	1 year
Agency Approvals	FCC,CE,ROHS

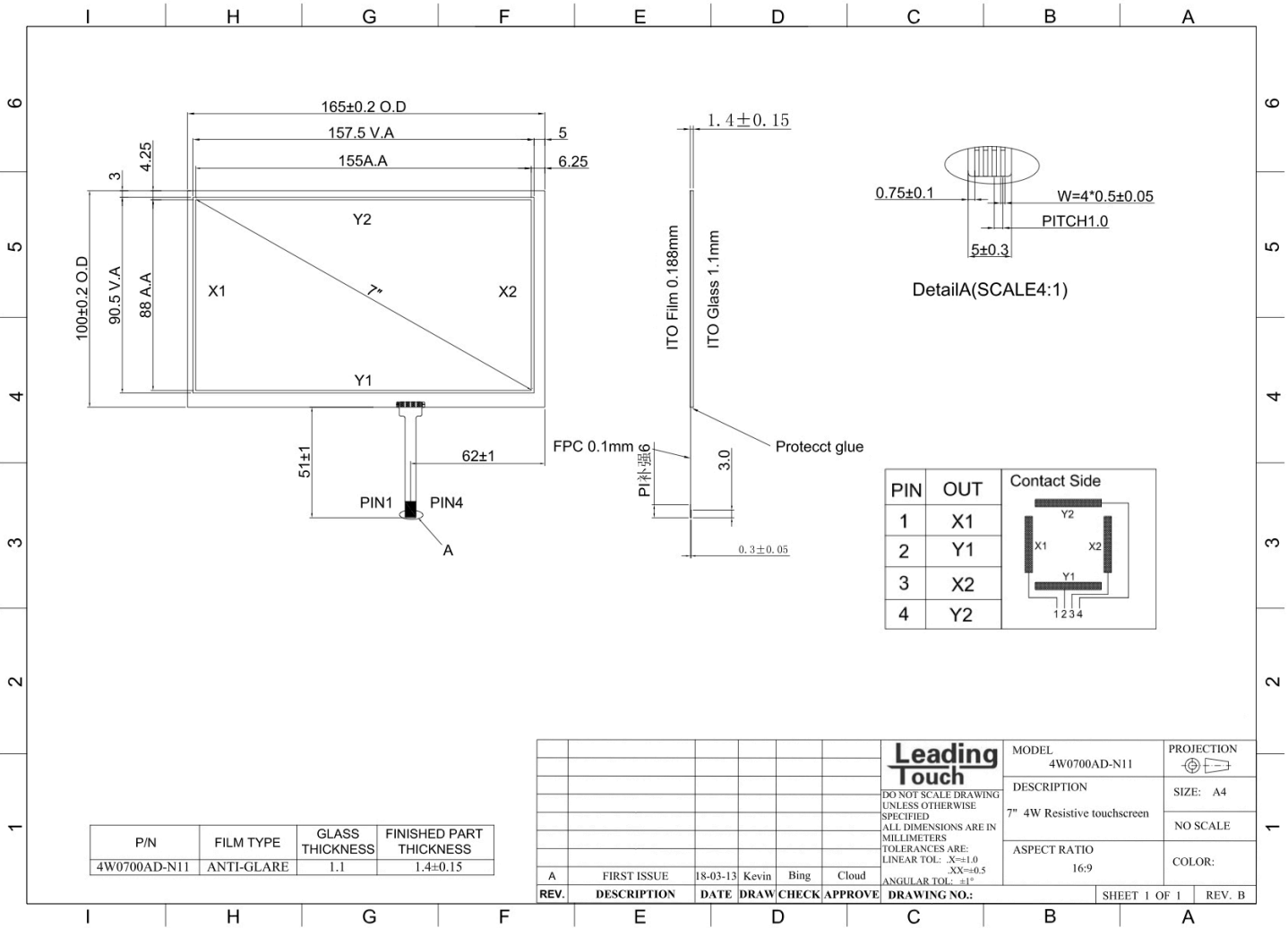

3. Drawing
