Model No: TC-0702AD

7inch PCAP Android Tablet

7inch PCAP Project Capacitive Desktop Android Tablet

Quantity :

Contact Now

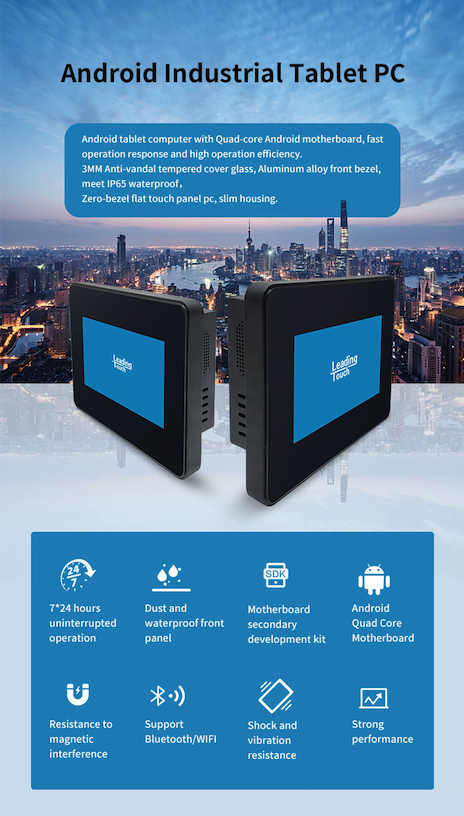

7"Android All-in-One PCAP Touch Computer
TC-0702A is 7inch capacitive All-in-one Android touch monitor; Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, Highlight display with Anti-vandal tempered cover glass meet IK07, Suitable for outdoor application, which is designed for Kiosks, Interactive Digital Signage, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and integrated by user.

FEATURES

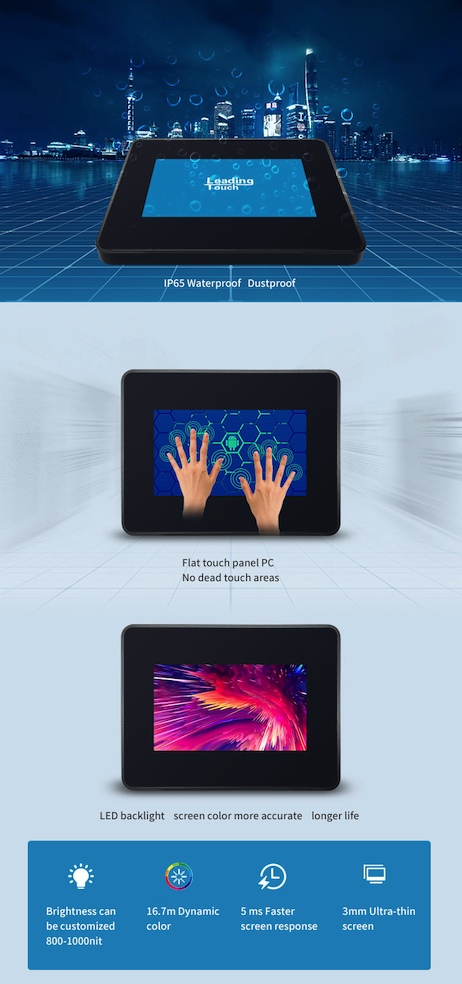

Zero-bezel flat touch computer, slim housing
High brightness LED panel
10Point multitouch project capacitive touch technology
3mm Anti-vandal tempered cover glass meet IK07

Aluminum alloy front bezel, meet IP65 waterproof
Efficient and stable Android computer system
Standard VESA mounting and four side bracket options

Combinations of features indicate that LeadingTouch Touch Computer is the best choice for you.

TC-0702A 7"Android PCAP All-in-one Touch Computer Specification
Product Model		TC-0702A
Product Description		7” Android PCAP All in one Touch Computer
DISPLAY	Display	7" 16:9 Active Matrix TFT LCD
	Useful Screen Area	86.5mm x 154.7mm
	Optimal Resolution	1024 x 600
	Number of colors	16.7 million
	Brightness	500nits（500/1000/1500nits options)
	Contrast Ratio	800:1 (Typical)
	Viewing Angle	Horizontal: ±75°or 150°total Vertical: ±75°or 150°total
ANDROID	Android OS	7.1/9.0/11.0
	CPU	Quad-core ARM Contex-A17 up to 1.8G
	GUP	Mail-T764 GPU
	RAM and ROM Flash	RAM:2G/4G DDR3 ROM Flash:Nand Flash 16GB/32GB
	SD and SIM Card Socket	SD Card Stoch:1,(Max 32G) SIM Card Socket:1

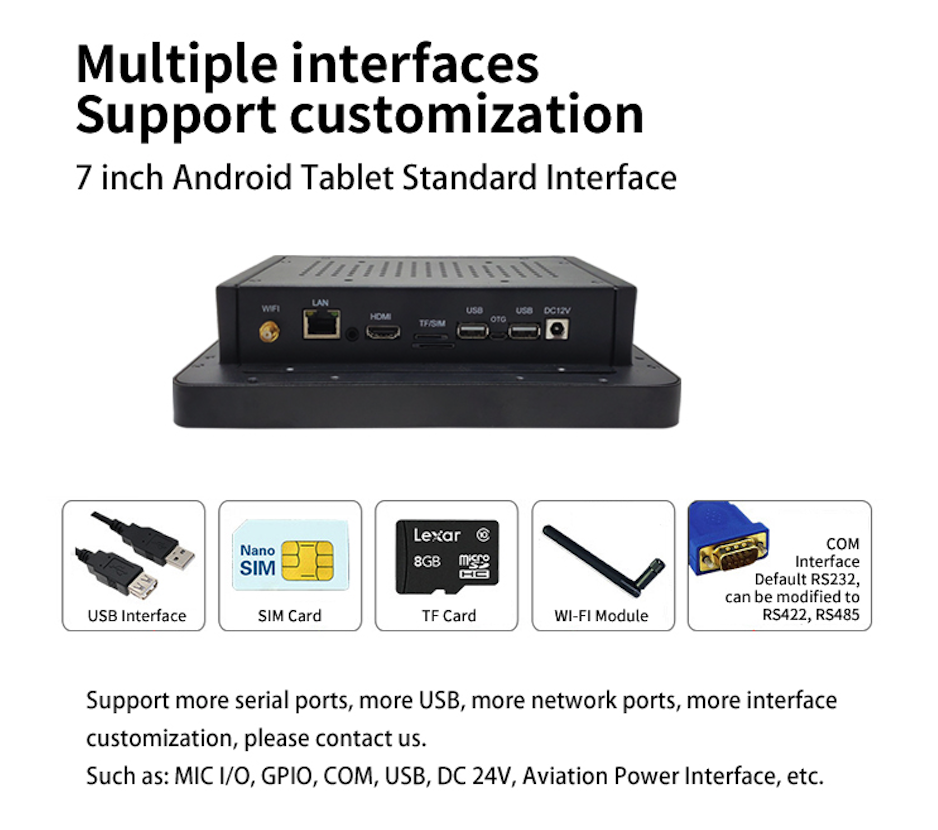

	USB and COM Port	2x USB Port
	OTG Port	1 x OTG
	Video Input	1 x HDMI
	Ethement Port	1 x LAN RJ45(Gigabit)
	Wireless	Wi-Fi 802.11 a/b/g/n/ac
	Bluetooth	Bluetooth 4.0
	Audio and Microphone	1 x 3.5mm line out, and 1 x microphone out
	Speaker	2x 12W internal speakers
	4G Module	Options
TOUCH	Touch Technology	Project capacitive touch technology
	Response Time	3ms
	Touch Resolution	32767 x 32767
	Touch Glass	3mm Anti-vandal tempered glass meet IK07
Sealability		Touchscreen sealed to Aluminum alloy-bezel IP65
Sealability		Touchscreen sealed to LCD
MTBF		50,000 hours demonstrated
Mounting Options		VESA Mount, four-side bracket and stand option
Power Supply		100-240VAC, 50-60Hz
Temperature Range		Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)		Operating: 20%-80%; Storage: 10%-90%
Product Dimension		221.5mm x 168.5mm x 55mm
Warranty		1 year
Agency Approvals		FCC, CE, RoHS
