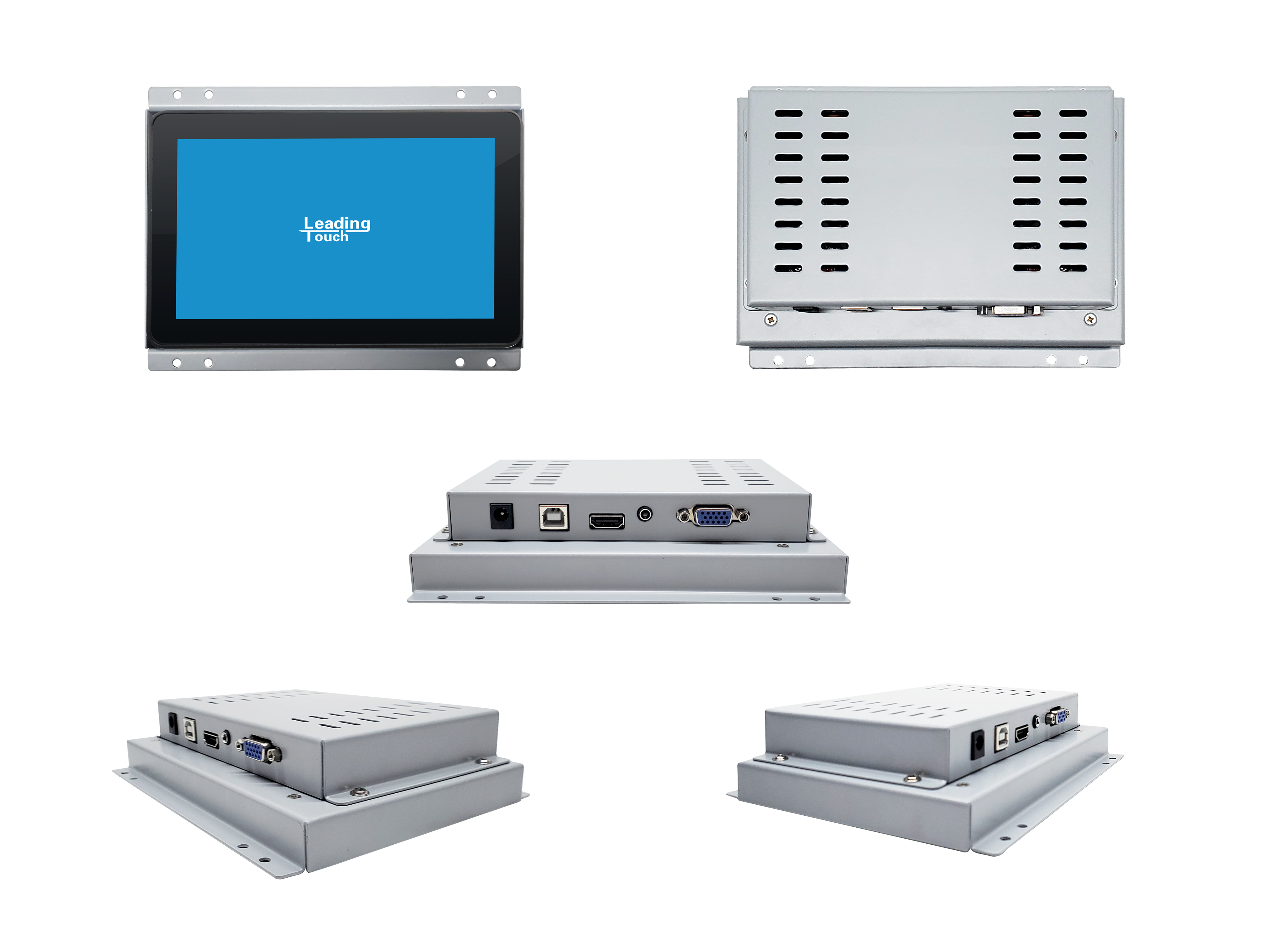

Model No: TM-0772
7inch PCAP touch monitor
7inch PCAP Project Capacitive Open FrTM-0762.pngame Touch Monitor
Quantity :
TM-0772 7inch project capacitive open frame touch monitor, Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, with anti-vandal tempered cover glass meet IK07, Suitable for outdoor application, which is designed for Kiosks, Interactive digital signage, ATM, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.
FEATURES
| Zero-bezel flat touch computer, slim housing Video Input VGA, DVI, HDMI Option On-Screen Display (OSD) Multitouch10Point project capacitive touch technology | 3mm anti-vandal tempered cover glass meet IK07 Efficient and stable intel computer system Standard VESA mounting and four side bracket options |
Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.
TM-0772 7" PCAP Open Frame Touch Monitor Specification | ||
Model | TM-0772 | |
Description | 7"Open Frame PCAP Multitouch Touch Monitor | |
Case/Bezel Color | Steel/Black | |
Display | 7inch Active matrix TFT LCD | |
| Aspect Ratio | 16:9 | |
Optimal (native) Resolution | 1024 × 600 | |
Useful Screen Area | 153.6mm × 90mm | |
Colors | 16.7 M | |
Brightness | 500nits（500/1000/1500nits options) | |
Contrast Ratio | 800:1 (Typical) | |
Viewing Angle(CR≥10) | Horizontal: ±80° or 670° total; Vertical: ±80° or 160° total | |
Input Video Format | HDMI | |
Input Video Signal Connector | HDMI | |
| On Screen Display | Controls (back):on/off, Menu, Left, Right, Auto | |
| Backlight Lamp Life | 50000 hrs | |
| Touch | Touch Technology | Projected Capacitive Touch Technology, Ture 10-40points Multitouch |
| Response Time | 3ms | |
| Touch Resolution | 32767×32767 | |
| Touch Glass | 3mm Anti-vandal tempered glass meet IK07 | |
| Sealability | Touchscreen sealed to Aluminum alloy-bezel IP65 | |
| Touchscreen sealed to LCD | ||
| MTBF | 50000 hrs demonstrated | |
Touch Interface | USB touch interface | |
| Support OS | HID Mode: Windows 7/8/10/11, Linux, Android, Raspberry Pi, MAC, etc. | |
Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket | |
| Power Supply | 12V DC, (24V DC POE Option) External Adapter: 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Dimension and Weight | Touch Monitor 179.8 x 137.8 x 42.3mm | |
Warranty | 1 year | |
Agency Approvals | CCC, FCC, CE, RoHS | |
