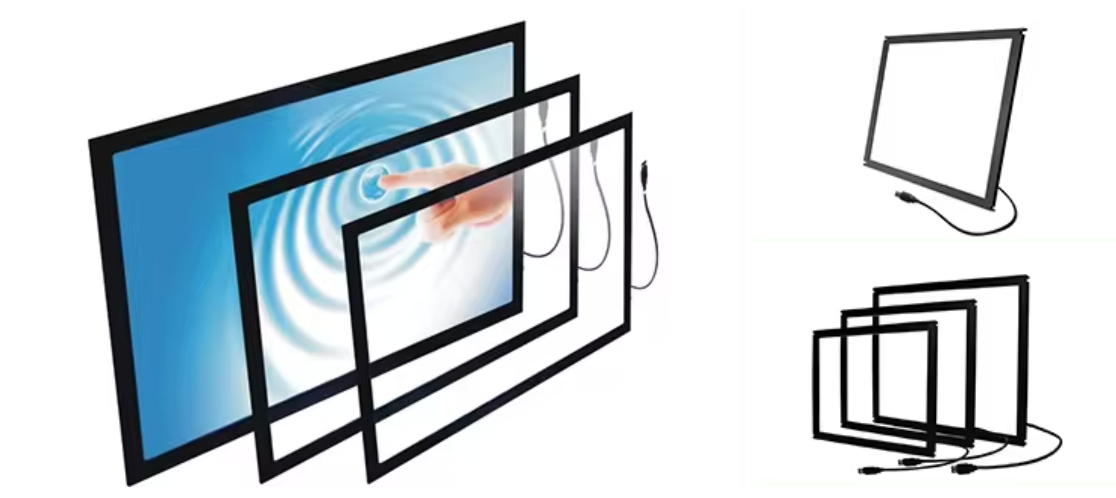

23.6inch 16:9 infrared touch overlay kit
Leadingtouch Infrared touchscreen is USB port, driver free with highest transparency. The preferred solution for application, reliability and clarity. Leasingtouch technology combines superior optical performance with excellent gasket-sealing capabilities, so it's an excellent choice for harsh industrial and outdoor kiosk applications. Touched with a finger, gloved hand, fingernail, or stylus, it delivers a fast, accurate response every time. Leadingtouch infrared technology is available for standard size and large size panel solutions. We can customized any size of it.
Muli-touch
Multi-touch function defines diverse of hand gestures to input your commands, which equals to a mouse. With one finger touch or dragging on screen surface can accomplish click, dragging or draw-line. Two fingers moving together on screen can zoom in/out. The gesture one finger anchored and the other moving around can lead to a 3D rotating. Leadingtouch Multi-touch touchscreen has all the advantages of traditional single-touch touchscreen: reliable, stable, super sensitive and drift-free, and can support various operation system such as Windows7/8/10/11, Android, Linux, etc...
| IRP2360UZ Series infrared touch panel is 4point multitouch and IP65 waterproof touchscreen that designed to easily fit in 23.6inch 16:9 LCD Display. | |
Active Area | 522.3mm x 294mm |
| Opening Bezel | 524.3mm x 296mm |
Outline Dimension | 558.3mm x 333.3mm with frame |
| Thickness | 6.8mm(Include 3mm glass) |
| Resolution | 32768 x 32768 |
| Input Medium | Finger or gloved hand (rubber, cloth or leather) |
| Minimum Touch Object | >3mm |
| Response Time | 5msec average |
| Glass Options | 3mm tempered glare/AG(anti-glare)/AR(anti-reflective)glass |
| Protected Level | IP65 (front panel) and dustproof |
| Touch point | Ture 4 point multitouch |
| Anti-Sunlight | Any Angle |
| Light Transmission | Up to 100%(no glass), AG glass 85%; AR glass 92% |
| Surface Durability | Mohs' hardness rating:7. |
| Positional Accuracy | Standard error deviation less than 1mm. |
| Life time | >50,000,000 touch |
| Temperature | Operating range: -20°C ~ 70°C Storage range: -20°C ~ 70°C |
| Humidity | Operating range: 0%~90% RH (no dew falls) Storage range: 0% to 95% RH (no dew falls) |
| Operating System | Plug& Play, Support 4point Multitouch under Windows7/8/10/11, linux and Android OS etc, all OS don't need driver. |
Controller | Integrate inside touch panel |
Operation Voltage | Typical +DC 5V,+4.75V to +5.25V |
| Power Supply | USB, Power ripple max.200mV rms, |
| Current | Power<2W,operating current<400mA |
| Interface | Full Duplex USB 2.0 (Full Speed) |
| Electrostatic Protection | EN61000-4-2,1995:Level 4. Contact dischange 8KV; air discharge 15KV |
| Cable and Connector | Typically exits from lower right corner, terminating in USB male connector |
