Model No: TM-1014

10.1inch 4-wire resistive touch monitor

10.1inch 4-wire resistive touch open frame touch monitor

Quantity :

Contact Now

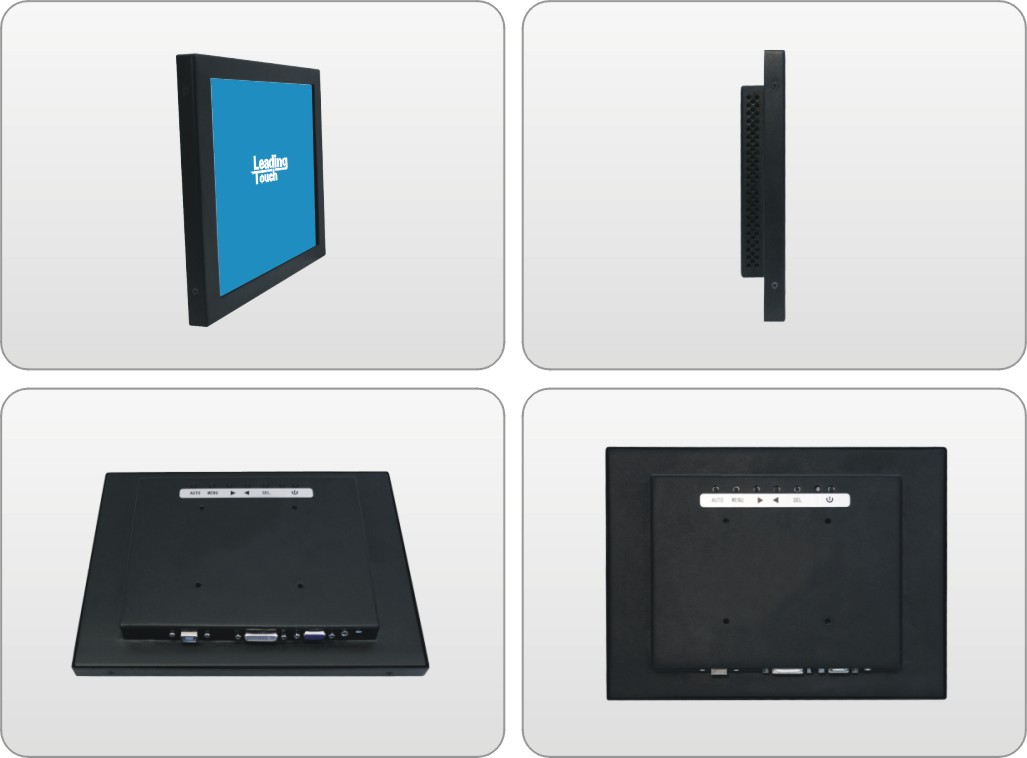

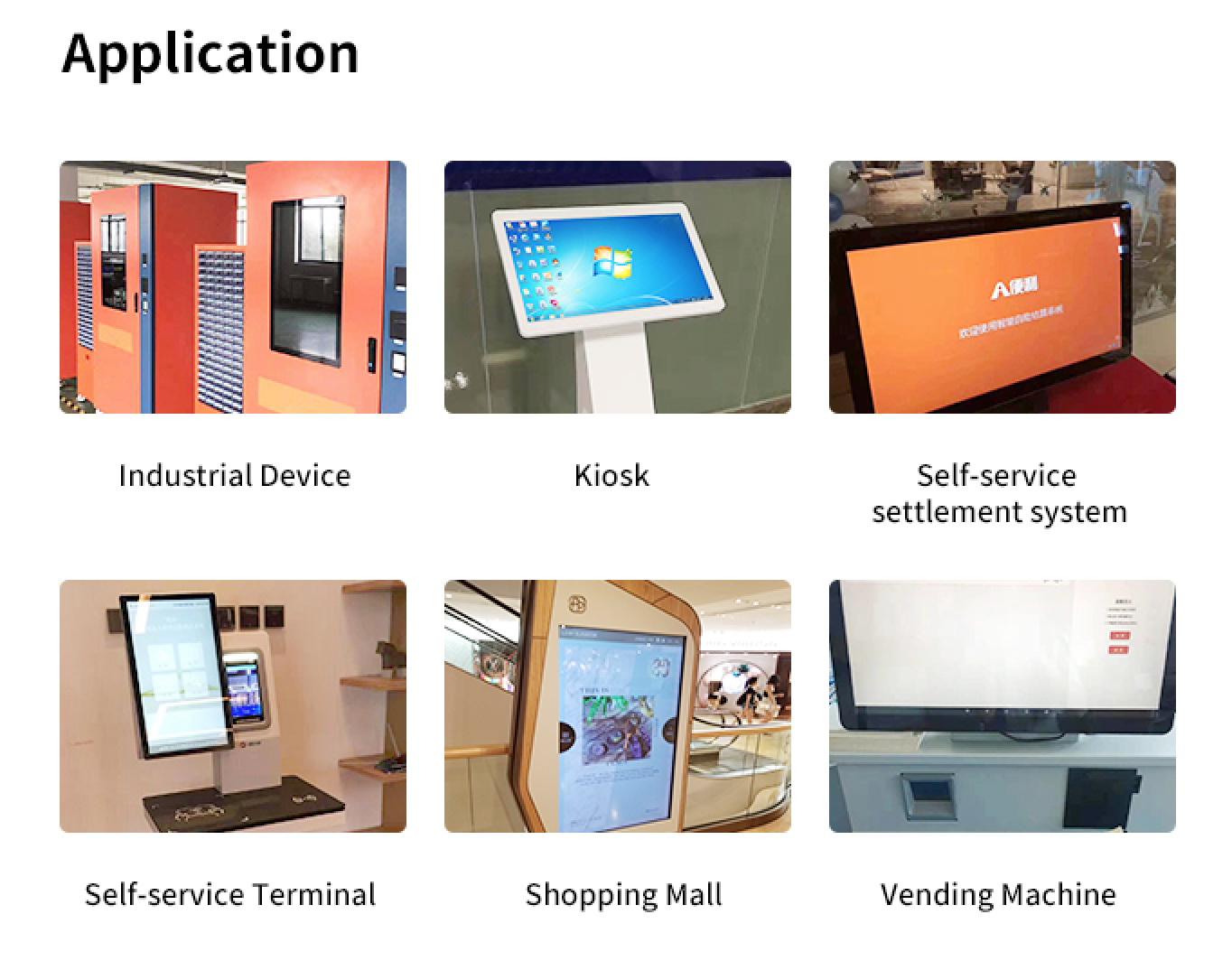

TM-1014 is 10.1inch 4-Wire Reistive touch open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURES

Economy Choice, Reliable quality, Easy operation;

Superb cosmetic, slim housing;
On-Screen display (OSD);

Optional mounting brackets(Front, side or rear);
Standard VESA hole as mounting option;
Multi-interface apply to various mounting or connection.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1014 10.1"4-Wire Resistive Open Frame Touch Monitor Specification
Model	TM-1014
Description	10.1"4-Wire Resistive Open Frame Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	10.1'' diagonal, Active matrix TFT LCD
Aspect Ratio	16:10
Optimal (native) Resolution	1280×800
Useful Screen Area	219m × 138mm
Colors	262K
Brightness	300nits（500/1000/1500nits options)
Response Time	10ms (Typical)
Contrast Ratio	900:1 (Typical)
I/O Ports	USB Touch, VGA, HDMI, 12V D/C in
Viewing Angle(CR≥10)	Horizontal: ±80° or 160° total; Vertical: ±80° or 160° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, HDMI Option
Input Video Signal Connector	VGA, HDMI Option
On Screen Display (OSD)	Controls(back): On/Off, Menu, Left, Right, Sel, Auto
Touch Technology	Leadingtouch 4-wire Resistive Touch Technology
Touch Interface	USB or RS232
Mounting Options	VESA Mount (75mm or 100mm) , Four side brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 262 x181 x 39mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
