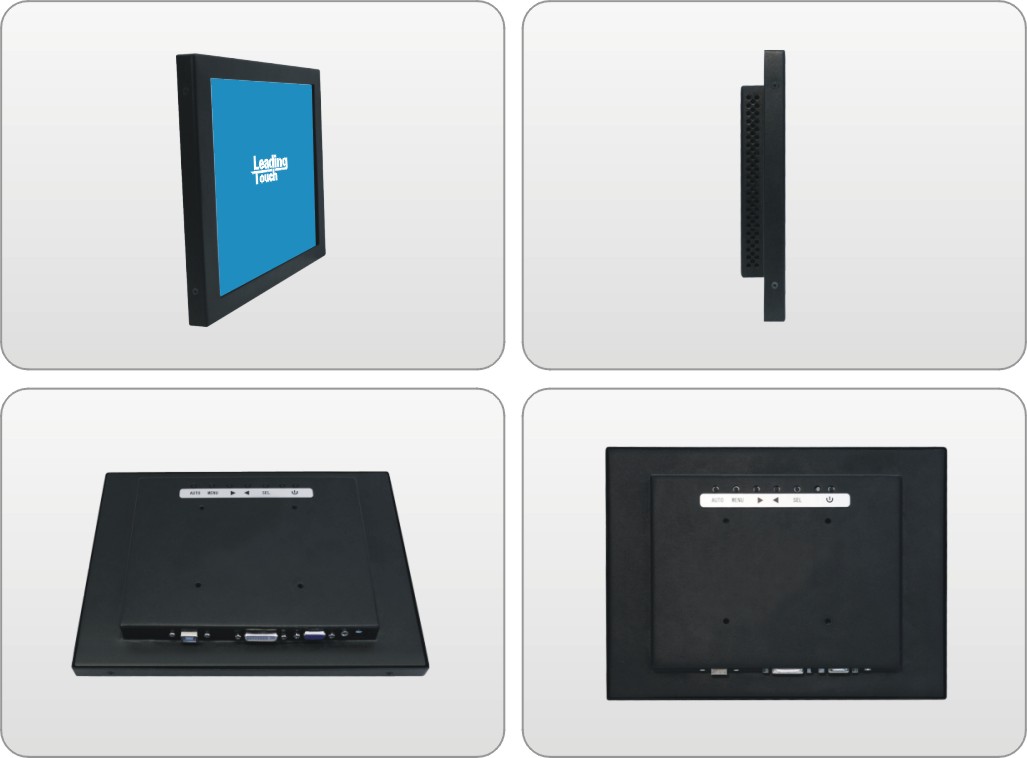

Model No: TM-1065

10.4inch 5-wire resistive touch monitor

10.4inch 5-wire resistive touch open frame touch monitor

Quantity :

Contact Now

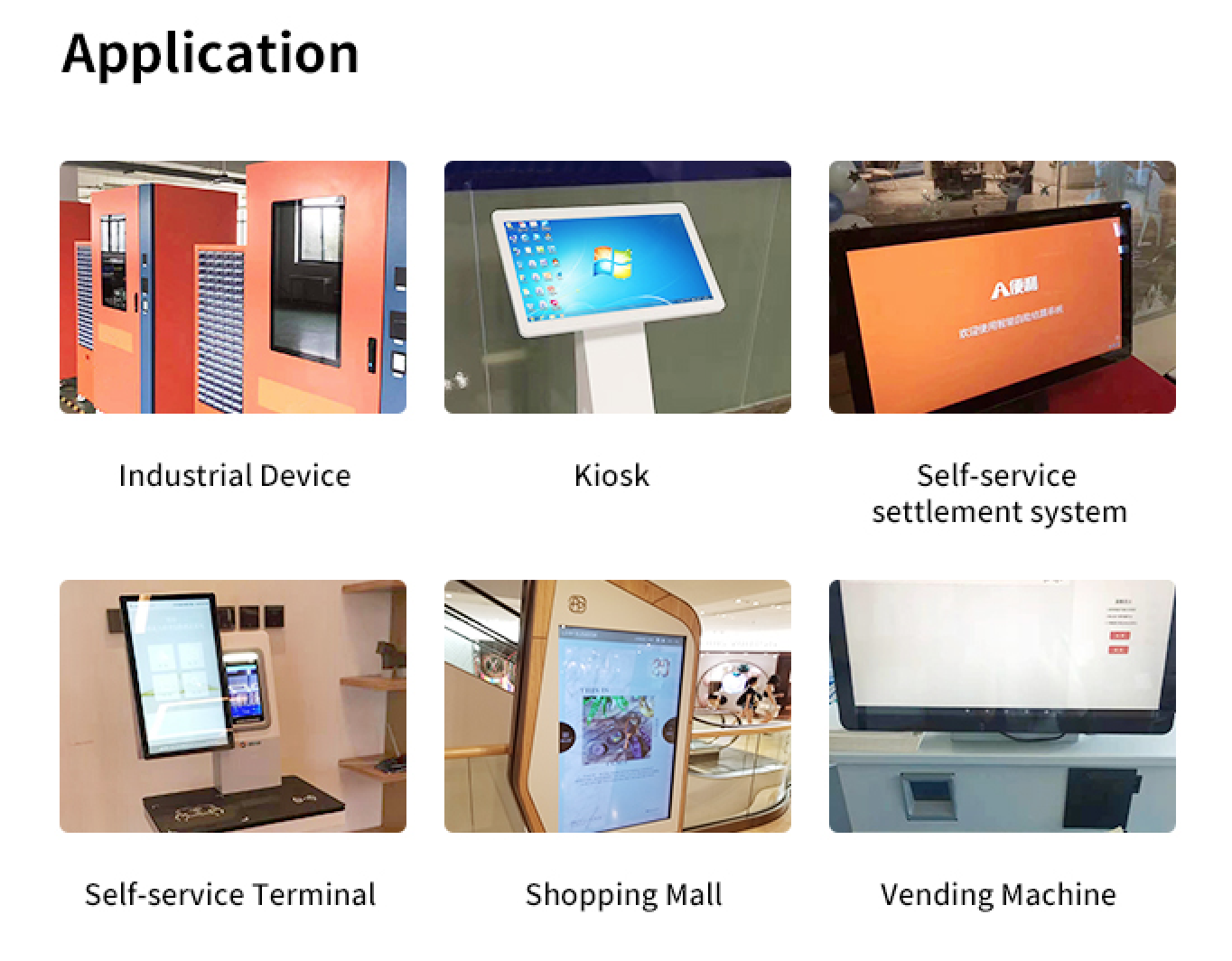

TM-1065 is 10.4inch 5-Wire Reistive touch open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURES

Economy Choice, Reliable quality, Easy operation;

Superb cosmetic, slim housing;
On-Screen display (OSD);

Optional mounting brackets(Front, side or rear);
Standard VESA hole as mounting option;
Multi-interface apply to various mounting or connection.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1065 10.4"5-Wire Resistive Open Frame Touch Monitor Specification
Model	TM-1065
Description	10.4"5-Wire Resistive Open Frame Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	10.4'' diagonal, Active matrix TFT LCD
Aspect Ratio	4:3
Optimal (native) Resolution	800×600
Useful Screen Area	212m × 159.4mm
Colors	16.7M
Brightness	400nits（500/1000/1500nits options)
Response Time	25ms (Typical)
Contrast Ratio	400:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±70° or 140° total; Vertical: 60°/70° or 130° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI Option
Input Video Signal Connector	VGA, DVI Option
On Screen Display (OSD)	Controls(back): On/Off, Menu, Left, Right, Sel, Auto
Touch Technology	Leadingtouch 5-wire Resistive Touch Technology
Touch Interface	USB or RS232
Mounting Options	VESA Mount (75mm or 100mm) , Four side brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 256 x193 x 33mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
