Model No: TM-1068

10.4inch IR touch monitor

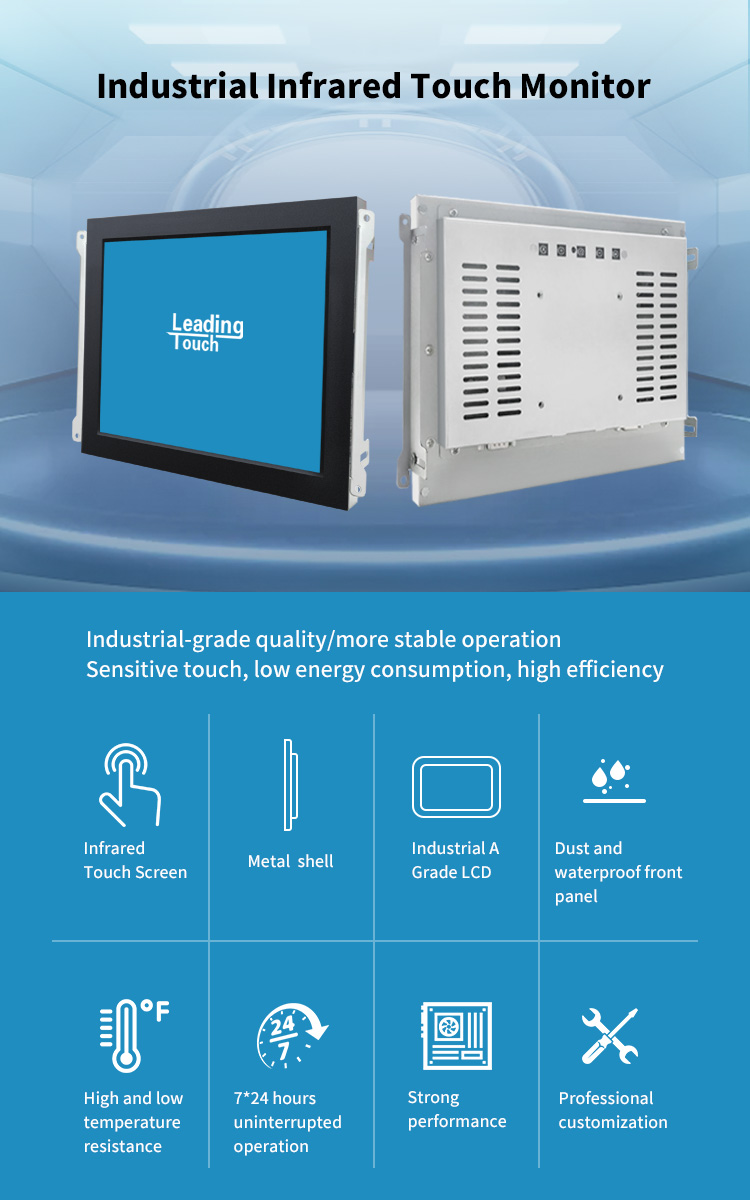

10.4inch infrared IP65 Open Frame Touch Monitor

Quantity :

Contact Now

TM-1068 is 10.4inch infrared IP65 open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURES

Superb cosmetic, slim housing;
On-Screen display (OSD);
Front bezel meet IP65 waterproof and dustproof;

3mm anti-vandal tempered glass meet UL60950;
Anti-sunlight, any angle on sunlight work well;
Infrared touch technology;
Standard VESA hole and four-side brackets.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1068 10.4"IP65 Infrared Open Frame Touch Monitor Specification
Model	TM-1068
Description	10.4"IP65 Open Frame Infrared Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	10.4'' diagonal, Active matrix TFT LCD
Aspect Ratio	4:3
Optimal (native) Resolution	800×600
Useful Screen Area	211.2mm × 158.4mm
Colors	16.7 M
Brightness	400nits（500/1000/1500nits options)
Response Time	5ms (Typical)
Contrast Ratio	500:1 (Typical)
I/O Ports	USB Touch, VGA, DVI, 12V D/C in
Viewing Angle(CR≥10)	Horizontal: ±70° or 140° total; Vertical: ±60° or 120° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI Option
Input Video Signal Connector	VGA, DVI Option
Touch Technology	Infrared touch technology
Touch Point	1point
Protected Level	IP65(Front bezle) and Anti-vandal 3mm galss meet IK07
Touch Interface	USB or RS232
Mounting Options	VESA Mount (75mm or 100mm) , Four side brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 253 x199.8 x 41.3mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
