Model No: TM-2168

21.5inch IR touch monitor

21.5inch infrared multitouch IP65 Open Frame Touch Monitor

Quantity :

Contact Now

TM-2168 is 21.5inch infrared multitouch IP65 open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURES

Superb cosmetic, slim housing;
Full-HD 1920×1080 display;
On-Screen display (OSD);
Front bezel meet IP65 waterproof and dustproof;

3-6mm anti-vandal tempered glass meet UL60950;
Anti-sunlight, any angle on sunlight work well;
Multitouch 4 Point infrared touch technology;
Standard VESA hole and four-side brackets.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-2168 21.5"FHD IP65 Infrared Open Frame Touch Monitor Specification
Model	TM-2168
Description	21.5"IP65 Open Frame Infrared Multitouch Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	21.5'' diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Optimal (native) Resolution	1920×1080 @60HZ
Useful Screen Area	474.7mm × 262.3mm
Colors	16.7 M
Brightness	250nits（500/1000/1500nits options)
Response Time	5ms (Typical)
Contrast Ratio	1000:1 (Typical)
I/O Ports	USB Touch, VGA, HDMI, DisplayPort, 12V D/C in
Viewing Angle(CR≥10)	Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
MTBF	50000 hrs demonstrated
Input Video Format	HDMI, VGA & Display Port
Input Video Signal Connector	HDMI, VGA & Display Port
Touch Technology	Leadingtouch multitouch infrared touch technology
Touch Point	Ture 4point multitouch
Protected Level	IP65(Front bezle) and Anti-vandal 3mm galss meet IK07
Anti-sunligh	Sunlight at any angle, work well, suitable for outdoor applications
Touch Interface	USB touch interface

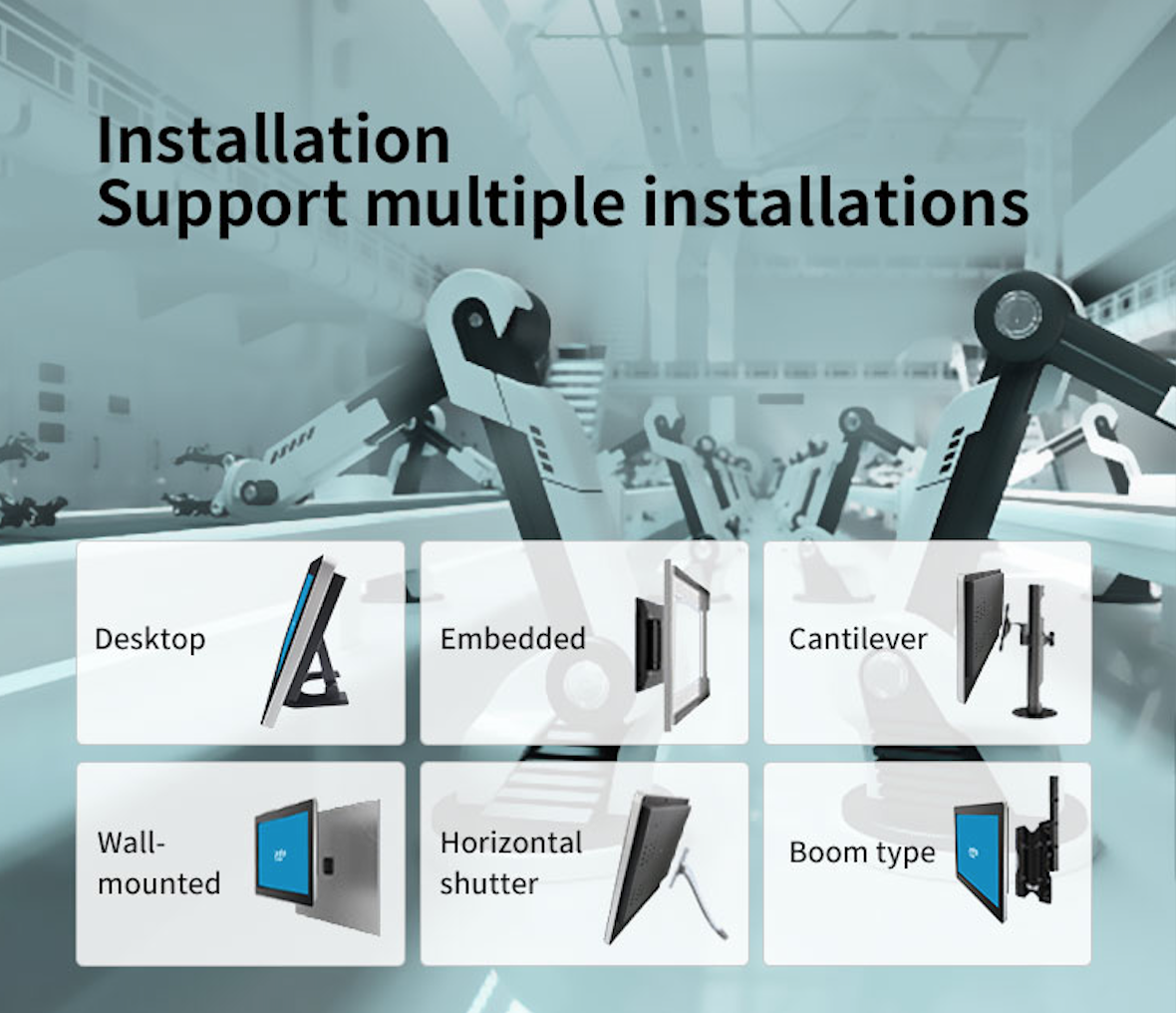

Mounting Options	VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 516.5 x 308 x 46.5mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
