Model No: TM-1572
15inch PCAP Desktop touch monitor
15inch PCAP Project Capacitive Desktop Touch Monitor
Quantity :
| TM-1572 15inch project capacitive desktop touch monitor, Plstic shell, inside PCAP touch meet IP65 waterproof, Highlight display with anti-vandal tempered cover glass, which is designed for POS, ATM, Bar, Choffee shop, hotel, Restaurant, Supermarket, Bakery, Monitor Room, Factory, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user. |
FEATURES

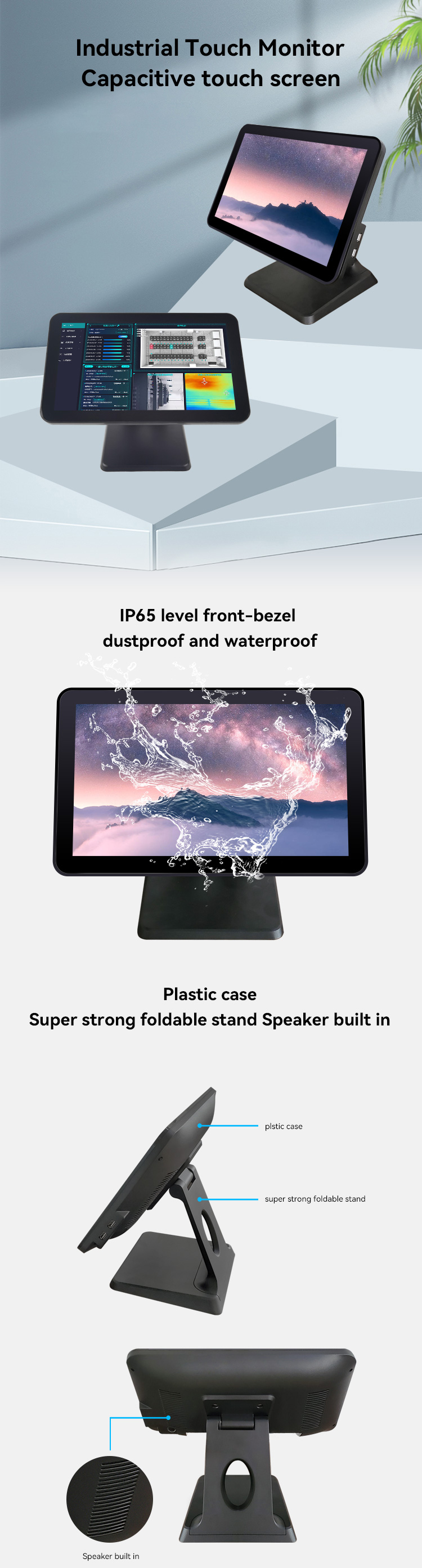

| Zero-bezel flat touch computer, slim housing Professional LCD panel On-Screen Display (OSD) Multitouch10Point project capacitive touch technology | 2mm anti-vandal tempered cover glass IP65 level front bezel dustproof and waterproof VGA, DVI and HDMI VIdeo Input Standard VESA mounting and desktop stand options |
Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.
TM-1572 15" PCAP Desktop Touch Monitor Specification | ||
Model | TM-1572 | |
Description | 15"4:3 Desktop PCAP Multitouch Touch Monitor | |
Case/Bezel Color | Plastic/Black | |
Display | 15inch Active matrix TFT LCD | |
| Aspect Ratio | 4:3 | |
Optimal (native) Resolution | 1024×768 | |
Useful Screen Area | 306mm × 229mm | |
Colors | 16.7 M | |
Brightness | 450nits（500/1000/1500nits options) | |
Contrast Ratio | 700:1 (Typical) | |
Viewing Angle(CR≥10) | Horizontal: ±80° or 160° total; Vertical: ±70° or 140° total | |
Input Video Format | VGA, HDMI Option | |
Input Video Signal Connector | VGA, HDMI Option | |
| On Screen Display | Controls (back):on/off, Menu, Left, Right, Auto | |
| Backlight Lamp Life | 50000 hrs | |
| Touch | Touch Technology | Projected Capacitive Touch Technology, Ture 10-40points Multitouch |
| Response Time | 3ms | |
| Touch Resolution | 32767×32767 | |
| Touch Glass | 2mm physical tempered glass | |
| Sealability | Touchscreen sealed to plastic shell | |
| Touchscreen sealed to LCD | ||
| MTBF | 50000 hrs demonstrated | |
Touch Interface | USB touch interface | |
| Support OS | HID Mode: Windows 7/8/10/11, Linux, Android, Raspberry Pi, MAC, etc. | |
Mounting Options | VESA Mount (75mm or 100mm) , desktop stand | |
| Power Supply | External Adapter: 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Dimension and Weight | Touch Monitor 350 x 280mm | |
Warranty | 1 year | |
Agency Approvals | CCC, FCC, CE, RoHS | |
