Model No: TM-1772

17inch PCAP Desktop touch monitor

17inch PCAP Project Capacitive Desktop Touch Monitor

Quantity :

Contact Now

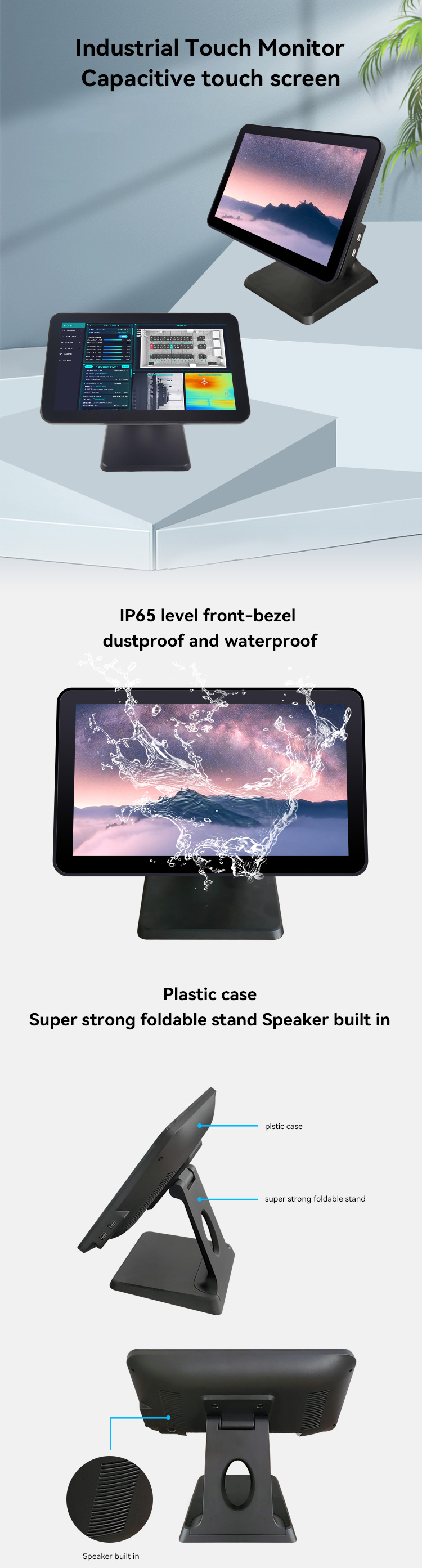

TM-1772 17inch project capacitive desktop touch monitor, Plstic shell, inside PCAP touch meet IP65 waterproof, Highlight display with anti-vandal tempered cover glass, which is designed for POS, ATM, Bar, Choffee shop, hotel, Restaurant, Supermarket, Bakery, Monitor Room, Factory, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.

FEATURES

Zero-bezel flat touch computer, slim housing
Professional LCD panel
On-Screen Display (OSD)
Multitouch10Point project capacitive touch technology

2mm anti-vandal tempered cover glass
IP65 level front bezel dustproof and waterproof
VGA, DVI and HDMI VIdeo Input
Standard VESA mounting and desktop stand options

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1772 17" PCAP Desktop Touch Monitor Specification
Model		TM-1772
Description		17"4:3 Desktop PCAP Multitouch Touch Monitor
Case/Bezel Color		Plastic/Black
Display		17inch Active matrix TFT LCD
Aspect Ratio		4:3
Optimal (native) Resolution		1280×1024
Useful Screen Area		337mm × 267mm
Colors		16.7 M
Brightness		250nits（500/1000/1500nits options)
Contrast Ratio		1000:1 (Typical)
Viewing Angle(CR≥10)		Horizontal: ±85° or 170° total; Vertical: ±80° or 160° total
Input Video Format		VGA, HDMI Option
Input Video Signal Connector		VGA, HDMI Option
On Screen Display		Controls (back):on/off, Menu, Left, Right, Auto
Backlight Lamp Life		50000 hrs
Touch	Touch Technology	Projected Capacitive Touch Technology, Ture 10-40points Multitouch
	Response Time	3ms
	Touch Resolution	32767×32767
	Touch Glass	2mm physical tempered glass
Sealability		Touchscreen sealed to plastic shell
		Touchscreen sealed to LCD
MTBF		50000 hrs demonstrated
Touch Interface		USB touch interface
Support OS		HID Mode: Windows 7/8/10/11, Linux, Android, Raspberry Pi, MAC, etc.
Mounting Options		VESA Mount (75mm or 100mm) , desktop stand
Power Supply		External Adapter: 100-240VAC, 50-60Hz
Temperature Range		Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)		Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight		Touch Monitor 339 x 327mm
Warranty		1 year
Agency Approvals		CCC, FCC, CE, RoHS
