Model No: TM-1965

19inch widescreen 5-wire resistive touch monitor

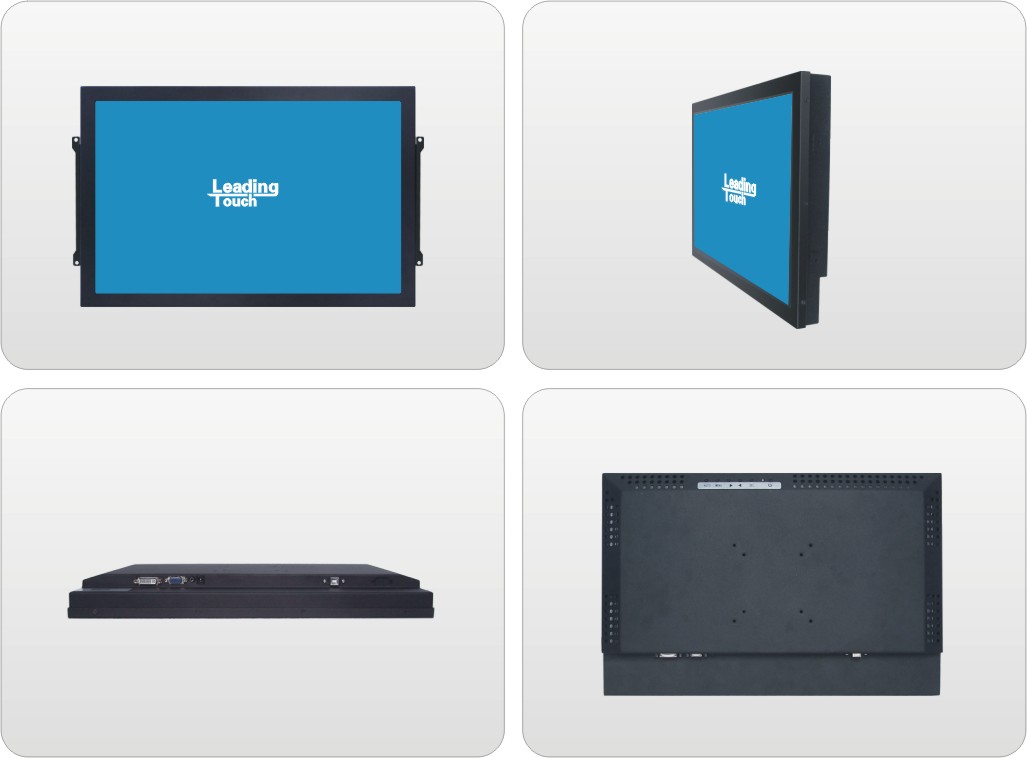

19inch widescreen 5-wire resistive touch open frame touch monitor

Quantity :

Contact Now

TM-1965 is 19inch widescreen 5-Wire Reistive touch open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURE

Economy Choice, Reliable quality, Easy operation;

Superb cosmetic, slim housing;
On-Screen display (OSD);

Optional mounting brackets(Front, side or rear);
Standard VESA hole as mounting option;
Multi-interface apply to various mounting or connection.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1965 19"widescreen 5-Wire Resistive Open Frame Touch Monitor Specification
Model	TM-1965
Description	19"Widescreen 5-Wire Resistive Open Frame Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	19'' diagonal, Active matrix TFT LCD
Aspect Ratio	16:10
Optimal (native) Resolution	1440×900 @60Hz
Useful Screen Area	412mm × 258mm
Colors	16.7 M
Brightness	300nits（500/1000/1500nits options)
Pixel Pitch	0.2835×0.2835
Response Time	5ms (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±80° or 160° total; Vertical: ±80° or 160° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI Options
Input Video Signal Connector	VGA, DVI Options
On Screen Display (OSD)	Controls(back): On/Off, Menu, Left, Right, Sel, Auto
Touch Technology	Leadingtouch 5-wire Resistive Touch Technology
Touch Interface	USB and RS232, or Dual RS232 and USB
OS and driver	Windows 7/8/10/11, Android, Linux, ELO driver or Leadingtouch driver
Mounting Options	VESA Mount (75mm or 100mm) , Side mount or Front mount brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 461 x 307 x 50.7mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
