Model No: TM-2165

21.5inch 5-wire resistive touch monitor

21.5inch 5-wire resistive touch open frame touch monitor

Quantity :

Contact Now

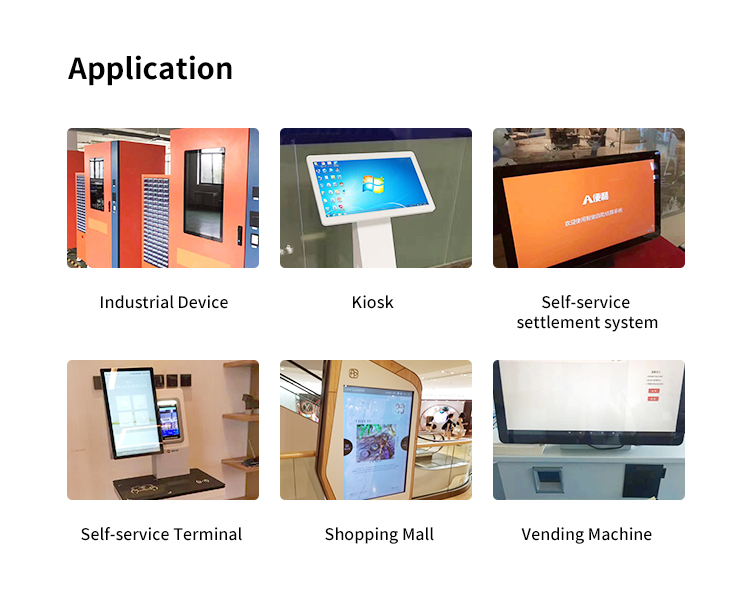

TM-2165 is 21.5inch widescreen 5-Wire Reistive touch open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURE

Economy Choice, Reliable quality, Easy operation;

Superb cosmetic, slim housing;
On-Screen display (OSD);

Optional mounting brackets(Front, side or rear);
Standard VESA hole as mounting option;
Multi-interface apply to various mounting or connection.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-2165 21.5" 5-Wire Resistive Open Frame Touch Monitor Specification
Model	TM-2165
Description	21.5"5-Wire Resistive Open Frame Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	21.5'' diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Optimal (native) Resolution	1920×1080 @60Hz
Useful Screen Area	478mm × 270mm
Colors	16.7 M
Brightness	250nits（500/1000/1500nits options)
Response Time	14ms (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
MTBF	50000 hrs
Input Video Format	VGA, DVI, HDMI Options
Input Video Signal Connector	VGA, DVI, HDMI Options
On Screen Display (OSD)	Controls(back): On/Off, Menu, Left, Right, Sel, Auto
Touch Technology	Leadingtouch 5-wire Resistive Touch Technology
Touch Interface	USB or RS232
OS and driver	Windows 7/8/10/11, Android, Linux, ELO driver or Leadingtouch driver
Mounting Options	VESA Mount (75mm or 100mm) , Side mount or Front mount brackets option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 520.1 x 311.2 x 41.7mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
