Model No: TM-2768

27inch IR touch monitor

27inch infrared multitouch IP65 Open Frame Touch Monitor

Quantity :

Contact Now

TM-2768 is 27inch infrared multitouch IP65 open frame touch monitor, cost-effective touch solution which designed for outdoor application. Application for ATM, Gaming, Casino, Interactive digital, Industrial, Kiosk, etc., is easily connected and integrated by user.

FEATURES

Superb cosmetic, slim housing;
On-Screen display (OSD);
Video Input VGA, DVI, HDIM options;

Anti-vandal 4mm physical tempered glass meet IK07;
Multitouch 10 Point infrared touch technology;
Standard VESA hole and four-side brackets.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-2768 27" IP65 Infrared Open Frame Touch Monitor Specification
Model	TM-2768
Description	27"IP65 Open Frame Infrared Multitouch Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	27"diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Optimal (native) Resolution	1920×1080
Useful Screen Area	602.3mm × 336.8mm
Colors	16.7 M
Brightness	300nits（500/1000/1500nits options)
Response Time	4ms (Typical)
Contrast Ratio	1000:1 (Typical)
I/O Ports	USB Touch, VGA, DVI, HDMI, 12V D/C in
Viewing Angle(CR≥10)	Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI, HDMI Option
Input Video Signal Connector	VGA, DVI, HDMI Option
Touch Technology	Leadingtouch multitouch infrared touch technology
Touch Point	Ture 10point multitouch
Protected Level	Anti-vandal 3mm galss meet IK07
OS	HID-Mode for windows 7/8/10/11, Android, Linux
Touch Interface	USB touch interface

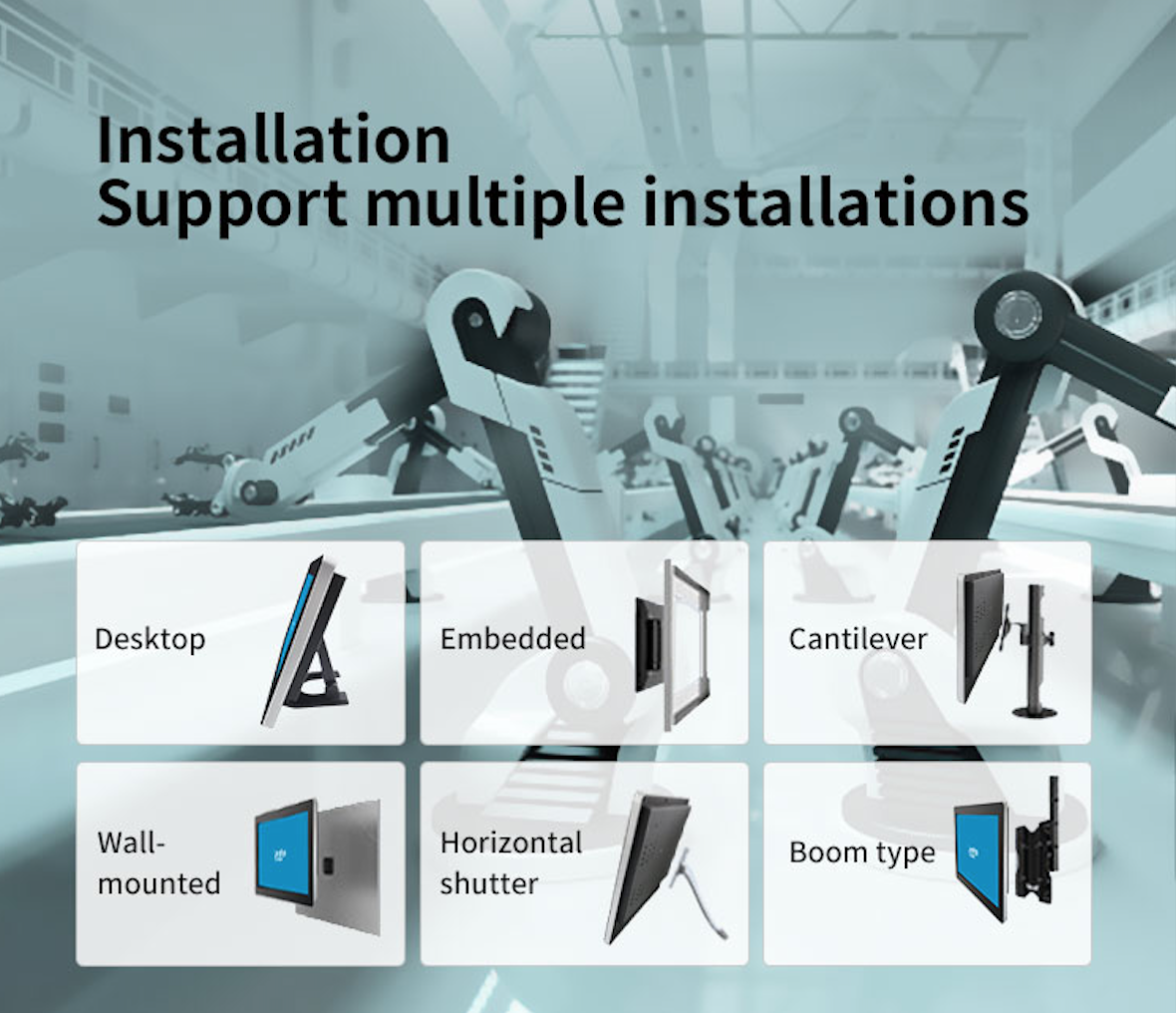

Mounting Options	VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 662 x 396.4 x 54mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
