Model No: TM-3278

32inch IR touch monitor

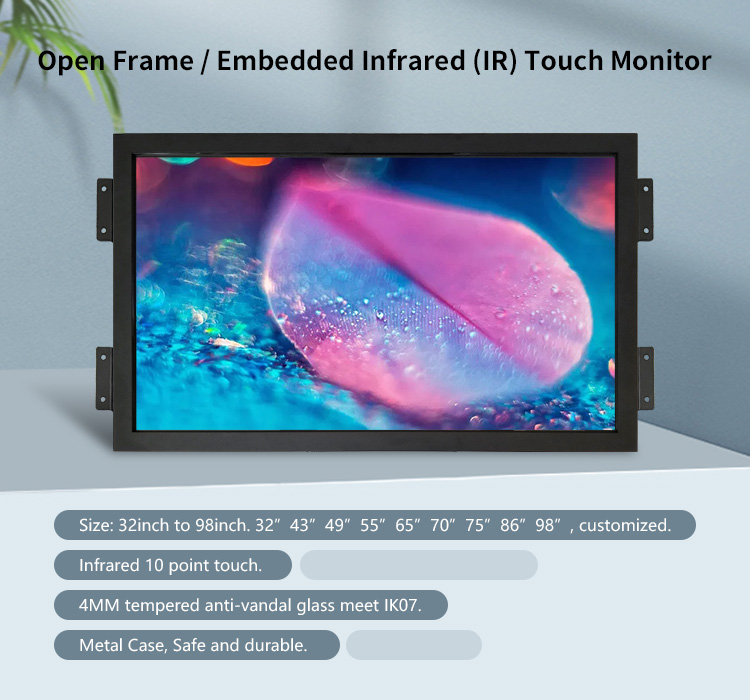

32inch infrared multitouch Open Frame Touch Monitor

Quantity :

Contact Now

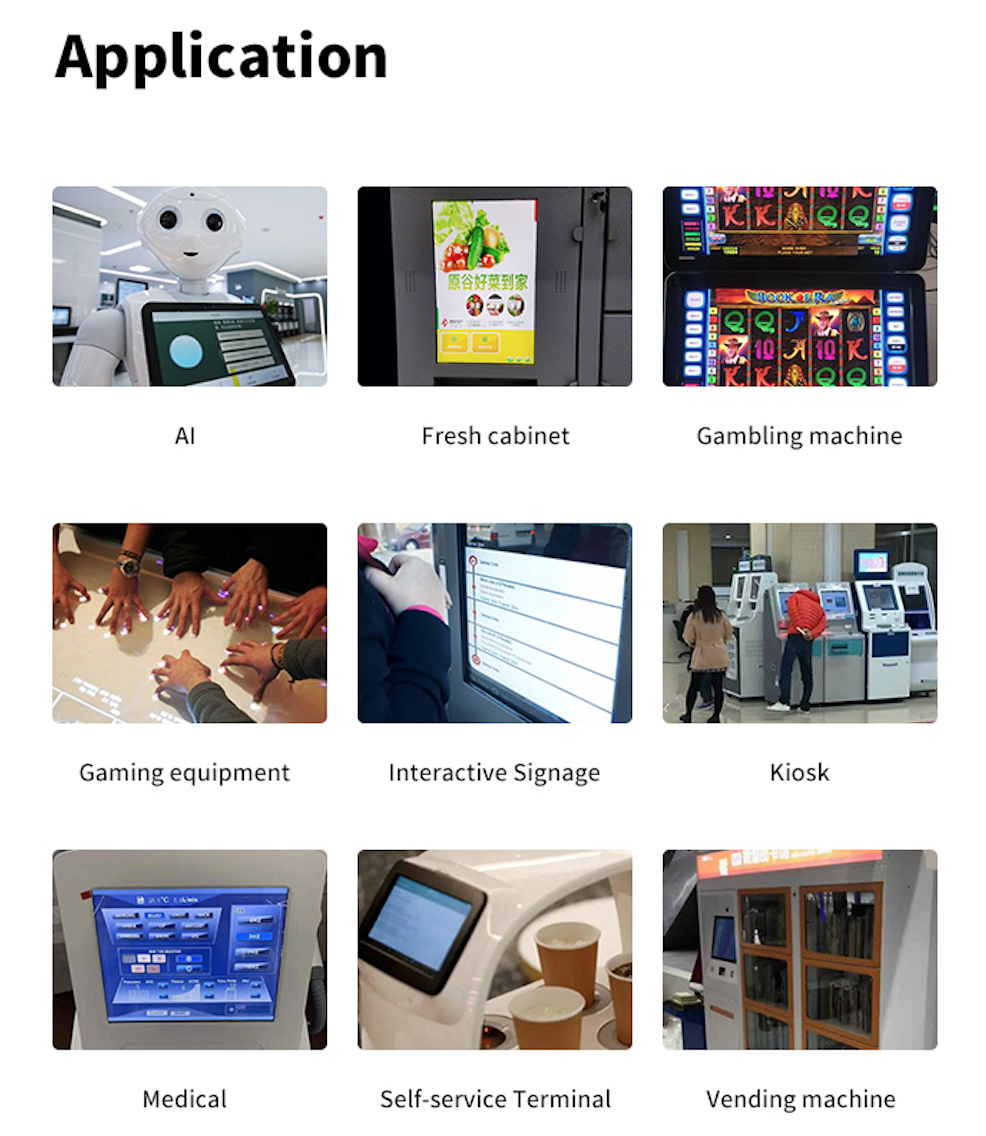

LeadingTouch TM-3278 is 32inch multitouch Infrared open frame touch monitor; cost-effective touch monitor; which is designed for Digital signage, Advertising machine,Kiosks,Gaming, Interactive digital,Industrial,Education,Transportation etc., is easily connected and integrated by user.

FEATURES

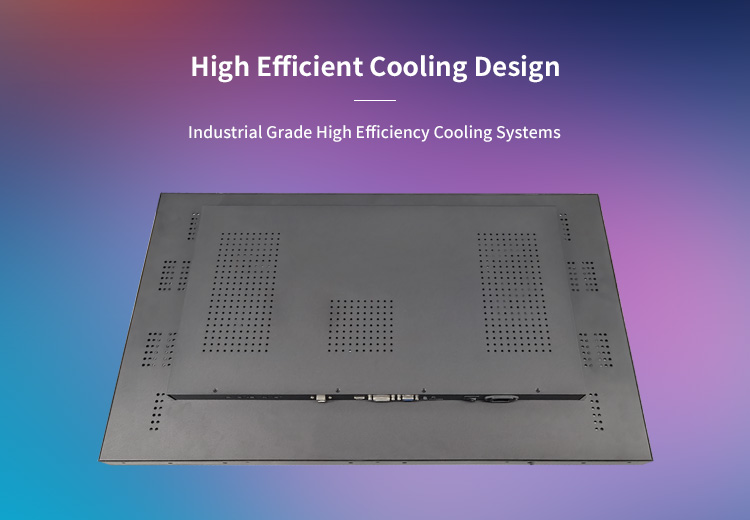

Superb cosmetic, slim housing;
On-Screen display (OSD);
Video Input VGA, DVI, HDIM options;

FHD 1920×1080;

Anti-vandal 4mm physical tempered glass meet IK07;

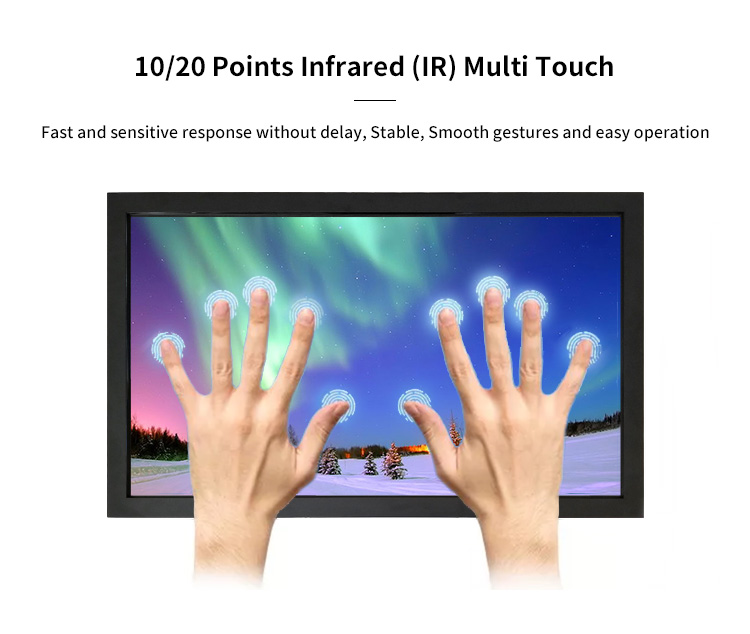

Multitouch 10 Point infrared touch technology;

Video Input VGA, DVI, HDMI Options;
Standard VESA hole and four-side brackets.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-3278 32" Infrared 10point Multitouch Open Frame Touch Monitor Specification
Model	TM-3278
Description	32"Infrared 10point FHD Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	32"diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Optimal (native) Resolution	1920×1080
Useful Screen Area	702mm × 396mm
Colors	16.7 M
Brightness	400nits（500/1000/1500nits options)
Response Time	4ms (Typical)
Contrast Ratio	2000:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI, HDMI Option
Input Video Signal Connector	VGA, DVI, HDMI Option
Touch Technology	Leadingtouch multitouch 10point infrared touch technology
Touch Point	Ture 10point multitouch
Protected Level	Anti-vandal 4mm galss meet IK07
OS	HID-Mode for windows 7/8/10/11, Android, Linux
Touch Interface	USB touch interface
Mounting Options	VESA Mount (300mm) , back bracket option
Power Supply	100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 763 x 457 x 59mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
