Model No: TM-8668

86inch IR touch monitor

86inch infrared multitouch Open Frame Touch Monitor

Quantity :

Contact Now

LeadingTouch TM-8668 is 86inch multitouch Infrared open frame touch monitor; cost-effective touch monitor; which is designed for Digital signage, Advertising machine,Kiosks,Gaming, Interactive digital,Industrial,Education,Transportation etc., is easily connected and integrated by user.

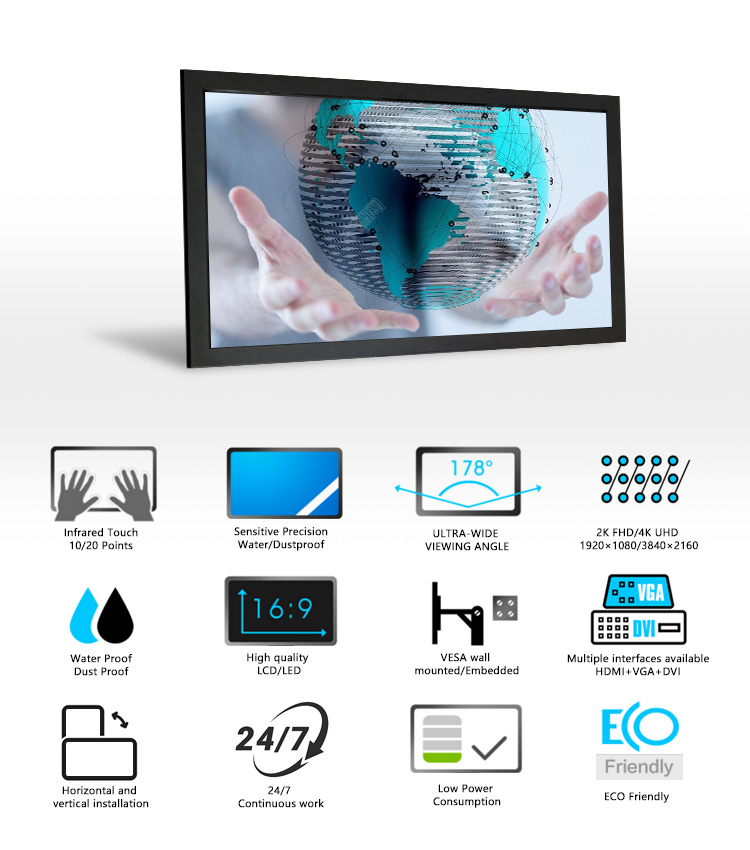

FEATURES

Superb cosmetic, slim housing;
On-Screen display (OSD);
Video Input VGA, DVI, HDIM options;

UHD 3840×2160 4K Display;

Anti-vandal 4mm physical tempered glass meet IK07;

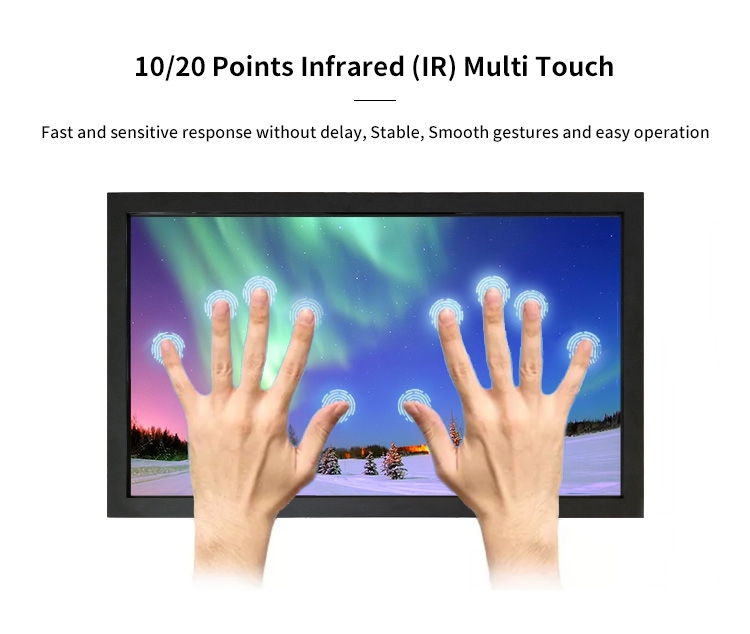

Multitouch 10 Point infrared touch technology;

Video Input VGA, DVI, HDMI Options;
Standard VESA hole and four-side brackets.

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-8668 86" Infrared 10point Multitouch Open Frame Touch Monitor Specification
Model	TM-8668
Description	86"Infrared 10point FHD Touch Monitor
Case/Bezel Color	Metal Shell/Black
Display	86"diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Optimal (native) Resolution	3840×2160
Useful Screen Area	1896mm × 1066mm
Colors	16.7 M
Brightness	500nits（500/1000/1500nits options)
Response Time	4ms (Typical)
Contrast Ratio	3000:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total
MTBF	50000 hrs demonstrated
Input Video Format	VGA, DVI, HDMI Option
Input Video Signal Connector	VGA, DVI, HDMI Option
Touch Technology	Leadingtouch multitouch 10point infrared touch technology
Touch Point	Ture 10point multitouch
Protected Level	Anti-vandal 4mm galss meet IK07

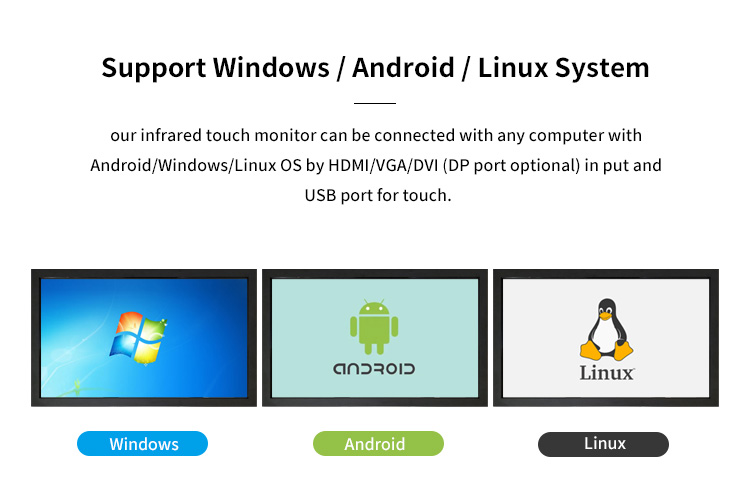

OS	HID-Mode for windows 7/8/10/11, Android, Linux
Touch Interface	USB touch interface
Mounting Options	VESA Mount (300mm) , back bracket option
Power Supply	100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 1997.2 x 1206.7 x 104.5mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
