Model No: 4W1010AD-N11
10.1inch 16:9 Touch Panel 4 wire resistive touch screens
10.1inch 16:9 Touch Panel 4 wire resistive touch screens with USB controller
Quantity :
Products: 10.1inch 16:9 Touch Panel 4W Resistive Touch Panel
Model: 4W1010AD-N11
Products Advantage:
Flexible, light weight, easy installation
4096x4096 HD resolution, high precision, fast response
USB port, touch a correction, high stability
Touch intensity, high sensitivity, touch-free drift
Single touch point, one-time calibration
More than 1 million touches in one location without failure
Support pen, finger, gloved hand, and many other media touch
Can be adapted to harsh environments
4096x4096 HD resolution, high precision, fast response
USB port, touch a correction, high stability
Touch intensity, high sensitivity, touch-free drift
Single touch point, one-time calibration
More than 1 million touches in one location without failure
Support pen, finger, gloved hand, and many other media touch
Can be adapted to harsh environments
1. General Specification
| Active Area | 124.98mm x 222.72mm |
| View Area | 128.08mm x 225.5mm |
| Outside Dimension | 143mm x 235mm |
| Total Thinckness | 1.4mm(Glass:1.1mm) |
| Tail Length | 65mm |
| Pinch | 1.0 |
| Input Medium | Stylus or Finger or Similar |
| Activation force | ≦45g ~ 110g (Stylus or Finger or Similar) |
| Contact Bounce | Less than 12 ms (input by finger) |
| Positional accuracy | X≦1.5%, Y≦1.5% |
Surface Hardness | ≧3H (Meets pencil hardness 3H per ASTM D 3363) |
| Resolution | Resolution Based on controller resolution of 4096 x 4096 |
| Life Performance | More than 1 million touches in one location without failure |
| Light Transmission | 75~ 85% (typical value) (per ASTM D1003) |
| Chemical Resistance | See Note1 |
| Light Transmission | ≧80%(Inside of guaranteed active area) Accordance with ASTM D1003 |
| Haze(ASTM D 1003) | Clear surface≦3% Antiglare Surface≦4% Anti-Newton≦10% |
| Operating Temperature | -10℃ ~ 60℃ |
| Operating Humidity | 20% ~ 85% RH (no dew falls) |
| Storage Temperature | -20℃ ~ 70℃ |
| Storage Humidity | 10% ~ 90% RH (no dew falls) |
| Waterproof | Not damaged by running water applied to the active area |
2. Electrical Characteristics
| Touch Interface | Conformity COM / USB |
| Supply Voltage | DC 5V |
| How to supply it | From COM / USB Port of PC |
| X、Y Resistance | X:200Ω~ 900Ω Y: 200Ω~ 900Ω (Varies with different size) |
| Insulation Resistance | ≧20MΩ/25V(DC) |
| Working Current | 5mA ~ 25mA |
| Endurance | No acting damage at DC50V/60sec. |
| Warranty | 1 year |
| Agency Approvals | FCC,CE,ROHS |

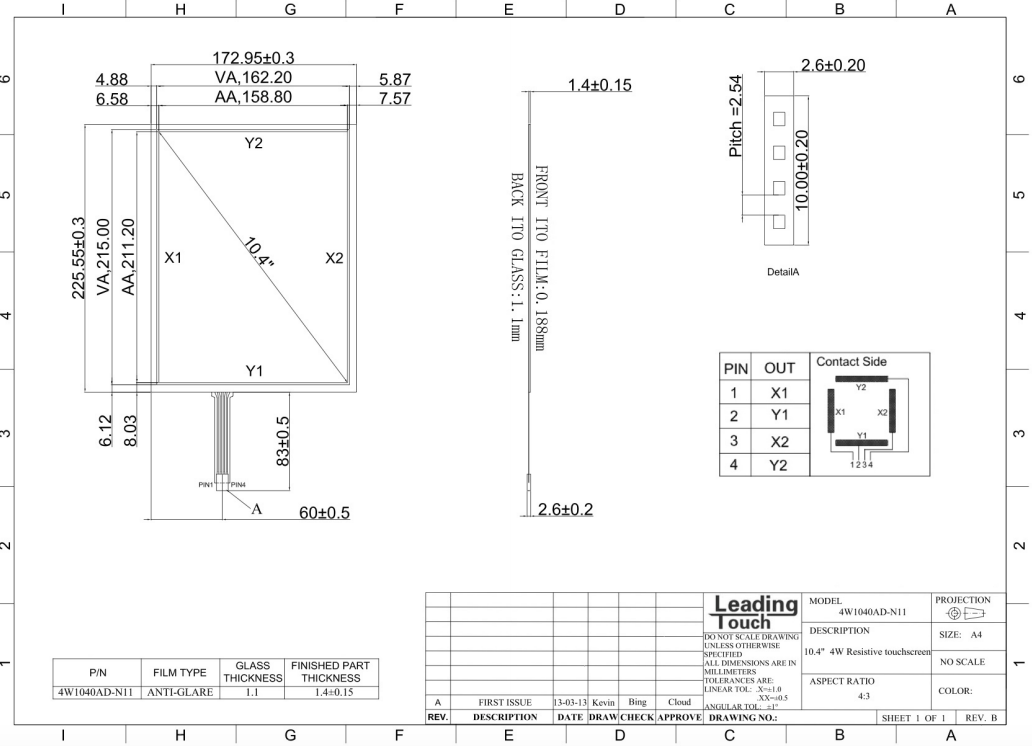

3. Drawing
