Model No: TM-1069
10.4inch SAW touch monitor
10.4inch SAW Touch IP65 Open Frame Touch Monitor
Quantity :

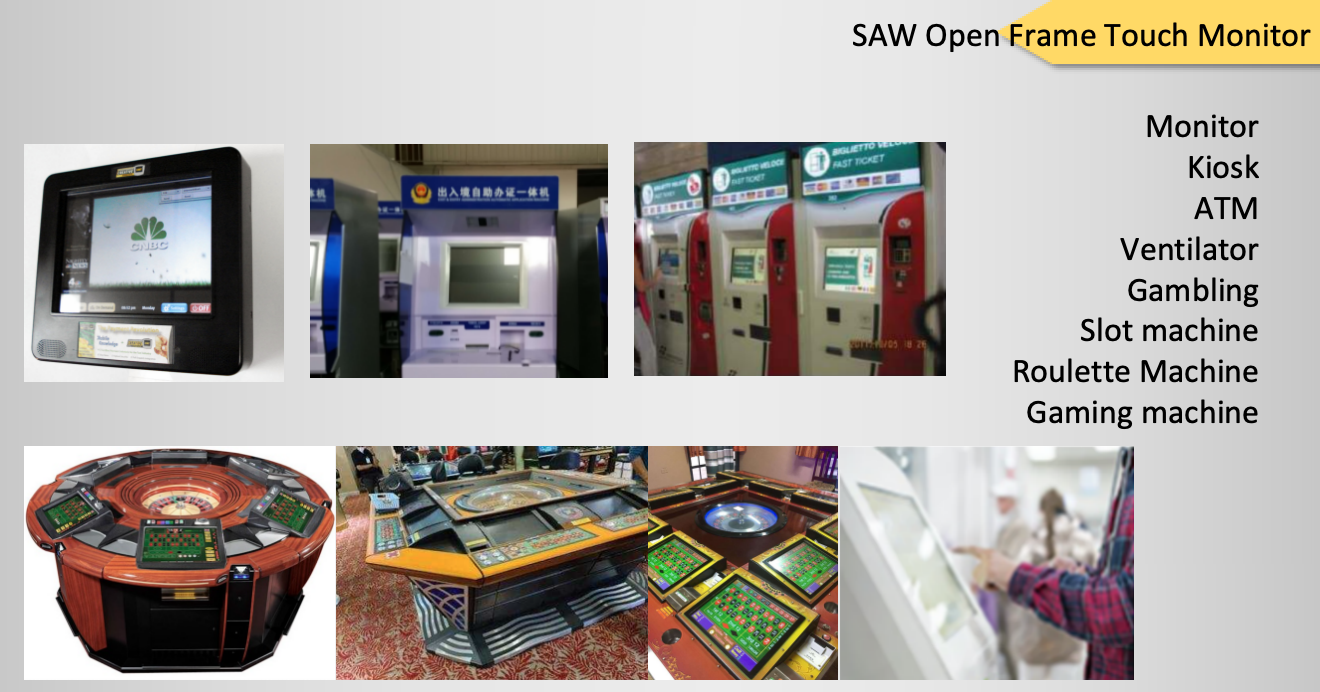

TM-1069 is 10.4inch SAW (Surface Acoustic Wave) open frame IP65 touch monitor; Cost-effective touch solution which is designed for Digital Signage, Advertising machine, Kiosk, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and installed by user.
FEATURES
Economy choice, Reliable quality, Easy operations, widely application Superb cosmetic, slim housing On-screen display (OSD) Multi-interface apply to various mounting or connection | Dustproof and waterproof reach IP65 Optional mounting brackets (Front, side or rear) Standard VESA hole as mounting option |
Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.
TM-1069 10.4"SAW IP65 Open Frame Touch Monitor Specification | |
Model | TM-1069 |
Description | 10.4"IP65 Open Frame Surface Acoustic Wave(SAW) Touch Monitor |
Case/Bezel Color | Steel/Black |
Display | 4:3 Active Matrix TFT LCD |
Optimal (native) Resolution | 800×600 @60Hz |
Useful Screen Area | 345.5mm × 194mm |
Colors | 16.7 M |
Brightness | 400cd/m2 |
Contrast Ratio | 400:1 (Typical) |
Viewing Angle(CR≥10) | RIght/Left 70°/70° ; UP/Down: 60°/80° |
Backlight Lamp Life | 50000 hrs |
Input Video Format | VGA / DVI Options |
Input Video Signal Connector | VGA/ DVI Options |
On Screen Display(OSD) | Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO |
Touch Technology | LeadingTouch Surface Acoustic Wave (SAW) touch technology |
Touch Interface | Dual RS232&USB touch interface |
| OS and driver | Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver |
| Protect Level | IP65(Front Bezel), 6mm anti-vandal tempered glass meet IK07 |
Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket |
Power Supply | DC:+12VDC ± 5% |
External Adapter: 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% |
Dimension and Weight | Touch Monitor 274 x 213 x 38mm |
Warranty | 1 year |
Agency Approvals | CCC, FCC, CE, RoHS |
