Model No: TM-1729

17inch SAW touch monitor

17inch SAW Touch IP65 Open Frame Touch Monitor

Quantity :

Contact Now

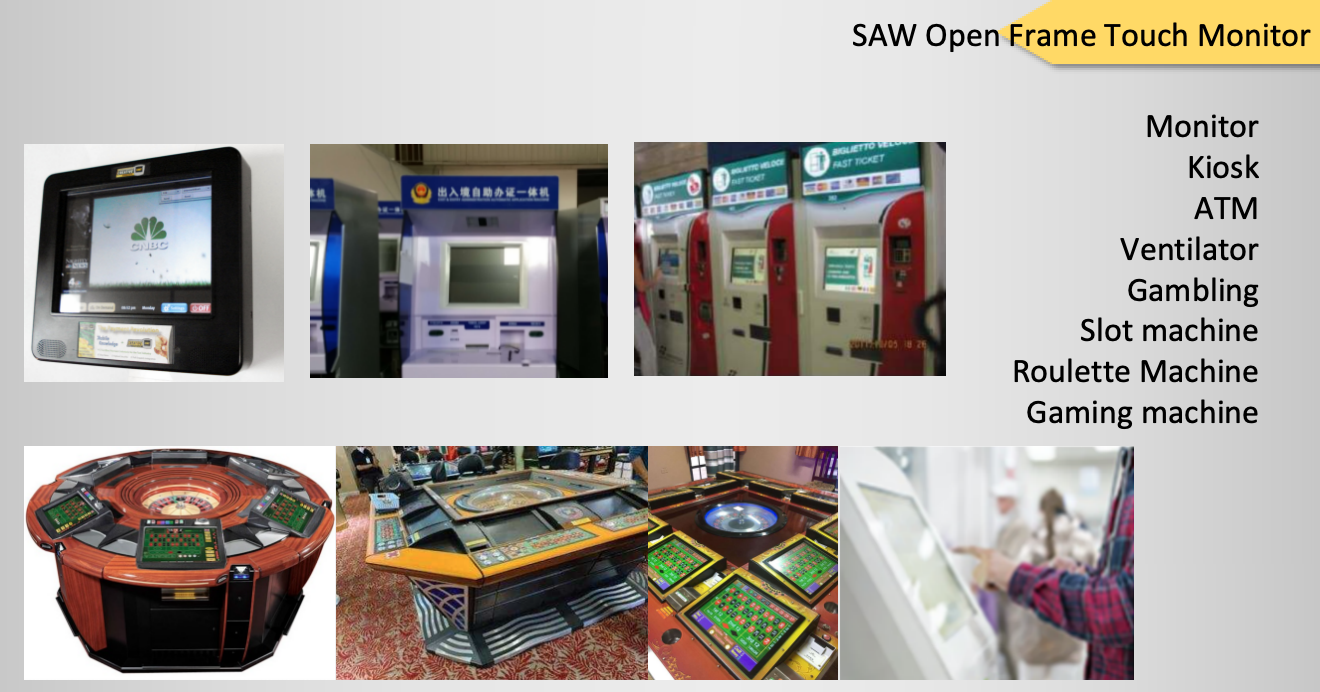

TM-1729 is 15inch SAW (Surface Acoustic Wave) open frame IP65 touch monitor; Cost-effective touch solution which is designed for Digital Signage, Advertising machine, Kiosk, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and installed by user.

FEATURES

Economy choice, Reliable quality, Easy operations, widely application
Superb cosmetic, slim housing
On-screen display (OSD)

Multi-interface apply to various mounting or connection

Dustproof and waterproof reach IP65
Optional mounting brackets (Front, side or rear)
Standard VESA hole as mounting option

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1729 17"SAW IP65 Open Frame Touch Monitor Specification
Model	TM-1729
Description	17"Open Frame Surface Acoustic Wave(SAW) Touch Monitor
Case/Bezel Color	Steel/Black
Display	5:4 Active Matrix TFT LCD
Optimal (native) Resolution	1280 ×1024 @60Hz
Useful Screen Area	340mm × 273mm
Colors	16.7 M
Brightness	250cd/m2
Response Time	3.8/1.2ms
Contrast Ratio	1000:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±85° or 170° total; Vertical: ±80° or 160° total
Backlight Lamp Life	50000 hrs
Input Video Format	VGA / DVI Options
Input Video Signal Connector	VGA/ DVI Options
On Screen Display(OSD)	Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO
Touch Technology	LeadingTouch Surface Acoustic Wave (SAW) touch technology
Touch Interface	USB or RS232 touch interface
Protected Level	IP65 (front bezel) options, 6mm anti-vandal tempered glass meet IK07
OS and Driver	Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver
Mounting Options	VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply	DC:+12VDC ± 5%
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Power Consumption	36W Max
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 371 x 309.8 x 46.7mm 4.8KGS
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
