Model No: TM-1269

12.1inch SAW touch monitor

12.1inch SAW Touch IP65 Open Frame Touch Monitor

Quantity :

Contact Now

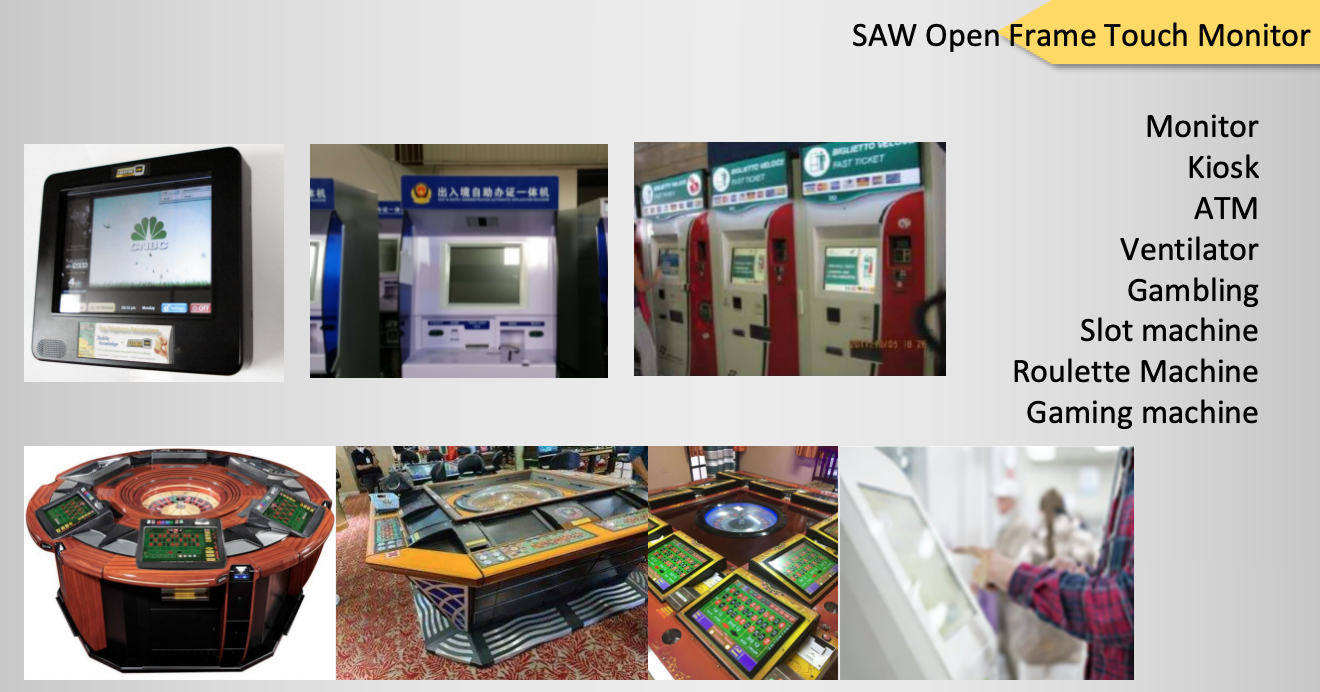

TM-1269 is 12.1inch SAW (Surface Acoustic Wave) open frame IP65 touch monitor; Cost-effective touch solution which is designed for Digital Signage, Advertising machine, Kiosk, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and installed by user.

FEATURES

Economy choice, Reliable quality, Easy operations, widely application
Superb cosmetic, slim housing
On-screen display (OSD)

Multi-interface apply to various mounting or connection

Dustproof and waterproof reach IP65
Optional mounting brackets (Front, side or rear)
Standard VESA hole as mounting option

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1269 12.1"SAW IP65 Open Frame Touch Monitor Specification
Model	TM-1269
Description	12.1"Open Frame Surface Acoustic Wave(SAW) Touch Monitor
Case/Bezel Color	Steel/Black
Display	4:3 Active Matrix TFT LCD
Optimal (native) Resolution	1024×768 @60Hz
Useful Screen Area	338mm × 270mm
Colors	16.7 M
Brightness	300cd/m2
Pixel Pitch	0.264 × 0.264 mm
Response Time	5ms (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±80° or 160° total; Vertical: ±80° or 160° total
Backlight Lamp Life	50000 hrs
Input Video Format	VGA / DVI Options
Input Video Signal Connector	VGA/ DVI Options
On Screen Display(OSD)	Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO
Touch Technology	LeadingTouch Surface Acoustic Wave (SAW) touch technology
Touch Interface	Dual RS232&USB touch interface
Protected Level	Standard Dustproof, IP65 (front bezel) options
OS and Driver	Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver
Mounting Options	VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply	DC:+12VDC ± 5%
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 289 x 228x 38.3mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
