Model No: TM-1569

15.6 inch SAW touch monitor

15.6inch SAW Touch IP65 Open Frame Touch Monitor

Quantity :

Contact Now

TM-1569 is 15.6inch SAW (Surface Acoustic Wave) open frame IP65 touch monitor; Cost-effective touch solution which is designed for Digital Signage, Advertising machine, Kiosk, ATM, Gaming, Casino, Industrial, Education, etc., is easily connected and installed by user.

FEATURES

Economy choice, Reliable quality, Easy operations, widely application
Superb cosmetic, slim housing
On-screen display (OSD)

Multi-interface apply to various mounting or connection

Dustproof and waterproof reach IP65
Optional mounting brackets (Front, side or rear)
Standard VESA hole as mounting option

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

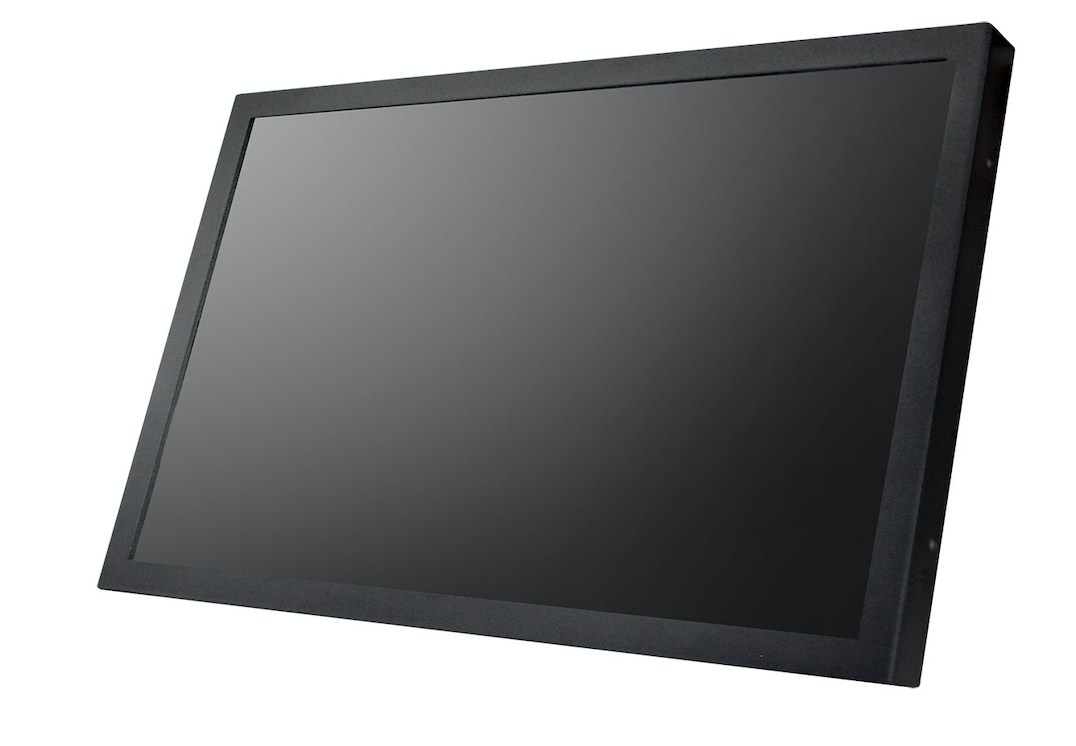

TM-1569 15.6"SAW IP65 Open Frame Touch Monitor Specification
Model	TM-1569
Description	15.6"Open Frame Surface Acoustic Wave(SAW) Touch Monitor
Case/Bezel Color	Steel/Black
Display	16:9 Active Matrix TFT LCD
Optimal (native) Resolution	1920×1080
Useful Screen Area	345.5mm×194mm
Colors	16.7 M
Brightness	250cd/m2
Contrast Ratio	800:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±85° or 170° total; Vertical: ±85° or 170° total
Backlight Lamp Life	50000 hrs
Input Video Format	VGA / DVI Options
Input Video Signal Connector	VGA/ DVI Options
On Screen Display(OSD)	Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO
Touch Technology	LeadingTouch Surface Acoustic Wave (SAW) touch technology
Touch Interface	USB touch interface
Protected Level	IP65 (front bezel) options
OS and Driver	Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver
Mounting Options	VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket
Power Supply	DC:+12VDC ± 5%
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: -0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension and Weight	Touch Monitor 395.5x242x46.8mm 6.5KGS
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS
