Model No: PC1850X1-G31BL

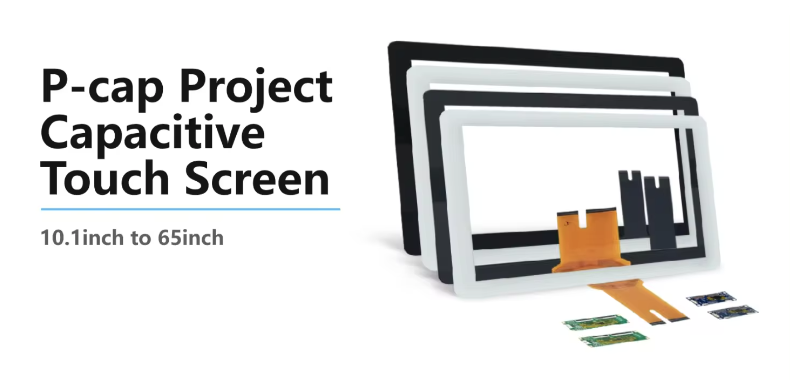

18.5inch projected capacitive touch screen panel
18.5 inch Touchscreen AG AR AF Glass EETI ILITEK Control Board Capacitive Touch Screen Panel Overlay kit
Quantity :
Product Description
Products: 18.5inch 16:9 PCAP (Project Capacitive) Touch Panel
Model: PC1850X1-G31BL
1. General Specification
Touch Technology | PCAP project capacitive touch technology |
Touch Panel Size | 18.5nch 16:9 |
Input Medium | Finger, gloved hand, or passive stylus |
Touch_Panel Structures | G+G |
Cover_Lens_Active Area | 231.40mm x 410.79 mm |
Cover_Lens_Outline Dimension | 268.50mm x 445.50mm |
Touch_Sensor_Active Area | 234.40mmx 413.80mm |
Touch_Sensor_Outline Dimension | 249.90mm x 428.00mm |
Total Thickness | 3.9±0.15mm (Cover_Lens 3.0mm & Sensor 0.7mm) |
Cover_Lens_Angle | 4 x R5.75 |
Report Rate | ≥100Hz |
Positional Accuracy | ±1.5mm |
Surface Hardness | ≧7H (Meets pencil hardness 7H per ASTM D 3363) |
Cover_Lens | 3mm tempered anti-vandal glass meet UL60950 stell ball drop |
Haze(ASTM D 1003) | Clear surface≦3% Antiglare Surface≦4% Anti-Newton≦10% |
Durability | Over 50 million touchs in one location |
Touchscreen Operating Temperature | -20℃ ~ 70℃ |
Controller Operating Temperature | -20℃ ~ 70℃ |
Touchscreen Operating Humidity | 20% ~ 90%RH (Non-condensing) |
Controller Operating Humidity | 20% ~ 90%RH (Non-condensing) |
Storage Environmental | -30℃ ~ 80℃, RH<90% (Non-condensing) |
2. Electrical Characteristics
| Touch_Controller_Mode | COB |
| Communication Interface(s) | USB (standard), RS-232, I2C(Options) |
| Supply Voltage | DC 5V |
| How to supply it | From COM / USB Port /Mainboard of PC |
| Number of Touches | Stanard 10points, Max 40points |
| Operating System | HID For Windows 7/8/10/11, Linux, Android, etc. |
| Warranty | 1 year |
| Agency Approvals | FCC,CE,ROHS |
