8.4inch SAW touch monitor

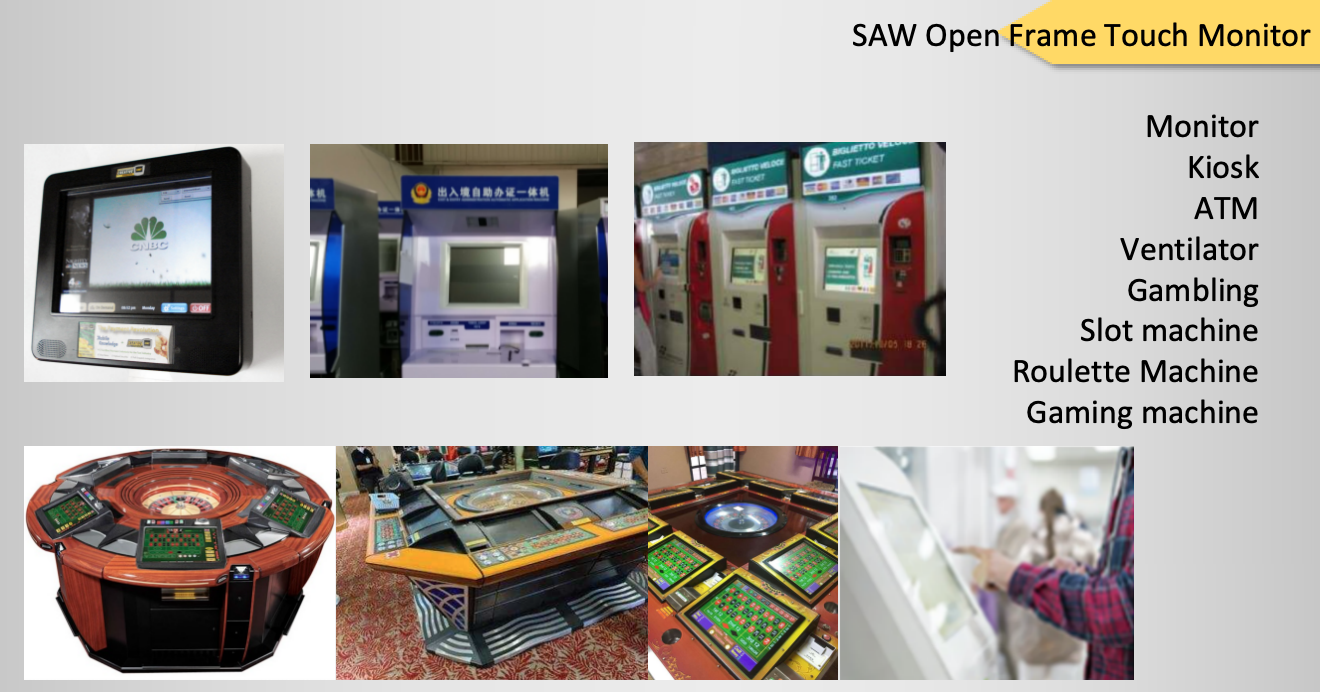

Leadingtouch Rear Mount LCD’s touchmonitors are designed for easy integration into kiosk, gaming machine, industrial enclosure and other installations where compact, touch-integrated display are preferred.
TM-084 series integrate the Leadingtouch’s IP65 level SAW, Resistive, Capacitive or Infrared touchscreen, TM-084 series is Dustproof and Waterproof touchmonitors.

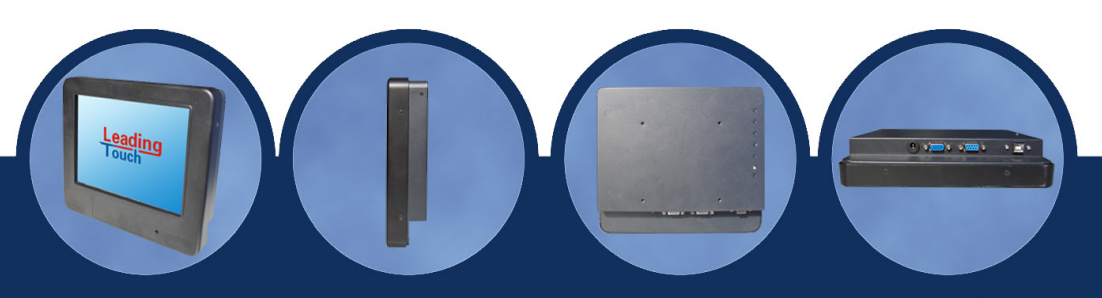

TM-084 series are designed for space saving and easy mounting integrations. The rear-mount configuration along with optional side mounting brackets would enable you to easily customize into kiosks, cabinets, in-wall as well as other enclosures.
TM-084 series will have Leadingtouch Combo controller with dual touch ports for convenience and flexibility. It will enable you to use both the Serial RS-232 as well as USB port for your touchscreen application.
FEATURES
| Rear Mount Slim profile with unique narrow border Multiple mounting options Rear-mount VESA mounting option and removable wing bracket for VESA Detachable cables for easy cable harnessing Single power supply for all optional devices | Multilingual and detachable On Screen Display (OSD) Comb Serial and USB touch interface Super-sensitive, drift-free, precise touch with no overlay Long-lasting product cycle Worldwide agency approvals |
Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.
TM-0849 8.4"SAW IP65 Open Frame Touch Monitor Specification | |
Model | TM-0849 |
Description | 8.4"IP65 Open Frame Surface Acoustic Wave(SAW) Touch Monitor |
Case/Bezel Color | Steel/Black |
Display | 4:3 Active Matrix TFT LCD |
Optimal (native) Resolution | 800×600 @60Hz |
Useful Screen Area | 127.8mm × 170.4mm |
Colors | 16.7 M |
| Response TIme | 1.3ms/3.7ms |
Brightness | 450cd/m2 |
Contrast Ratio | 800:1 (Typical) |
Viewing Angle(CR≥10) | RIght/Left 80°/80° ; UP/Down: 80°/80° |
Backlight Lamp Life | 50000 hrs |
Input Video Format | VGA |
Input Video Signal Connector | VGA |
On Screen Display(OSD) | Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO |
Touch Technology | LeadingTouch Surface Acoustic Wave (SAW) touch technology |
Touch Interface | Dual RS232&USB touch interface |
| OS and driver | Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver |
| Protect Level | IP65(Front Bezel), 6mm anti-vandal tempered glass meet IK07 |
Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket |
Power Supply | DC:+12VDC ± 5% |
External Adapter: 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ |
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% |
Dimension and Weight | Touch Monitor 226 x 202 x 48.5mm |
Warranty | 1 year |
Agency Approvals | CCC, FCC, CE, RoHS |
